00 00 250 BMW engine oil service (M54/56)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil in a suitable container.

Observe country-specific waste-disposal regulations.

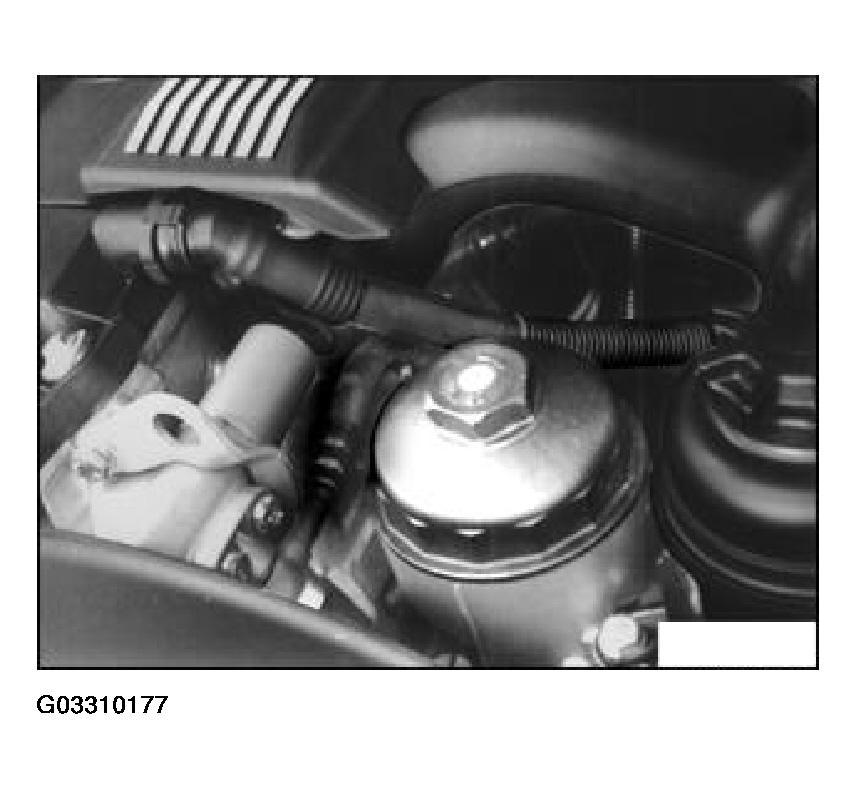

Undo oil filter cap (36 A/F).

Fig 1: Identifying Oil Filter Cap (36 A/F)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil flows from oil-filter housing into oil pan.

Installation:

Tightening torque: 11 42 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Installation:

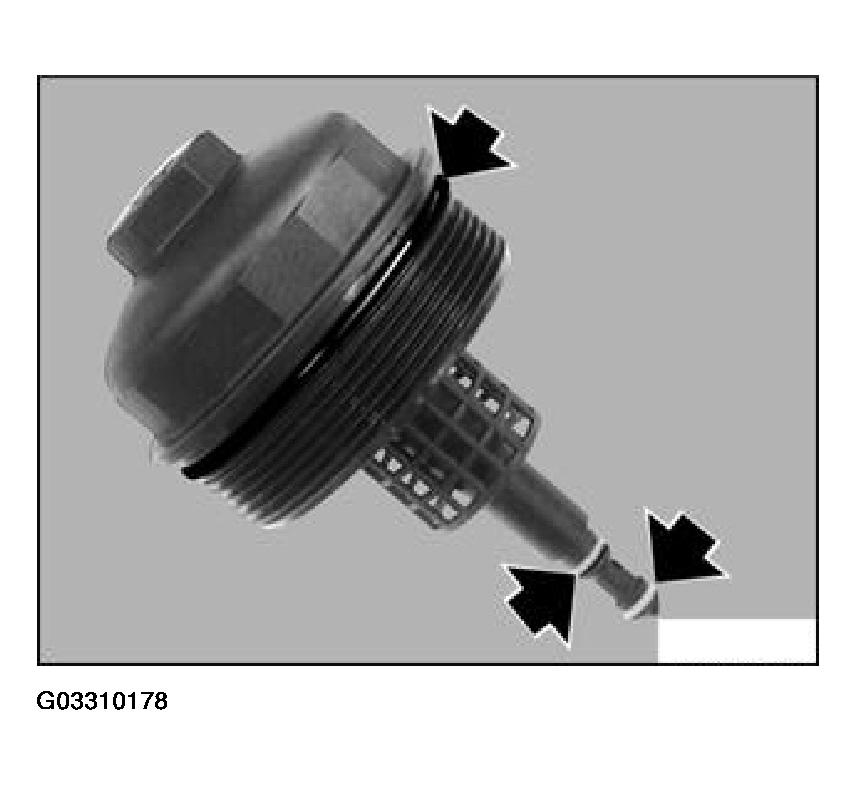

Replace seals and coat with oil.

Fig 2: Locating Seals

Courtesy of BMW OF NORTH AMERICA, INC.

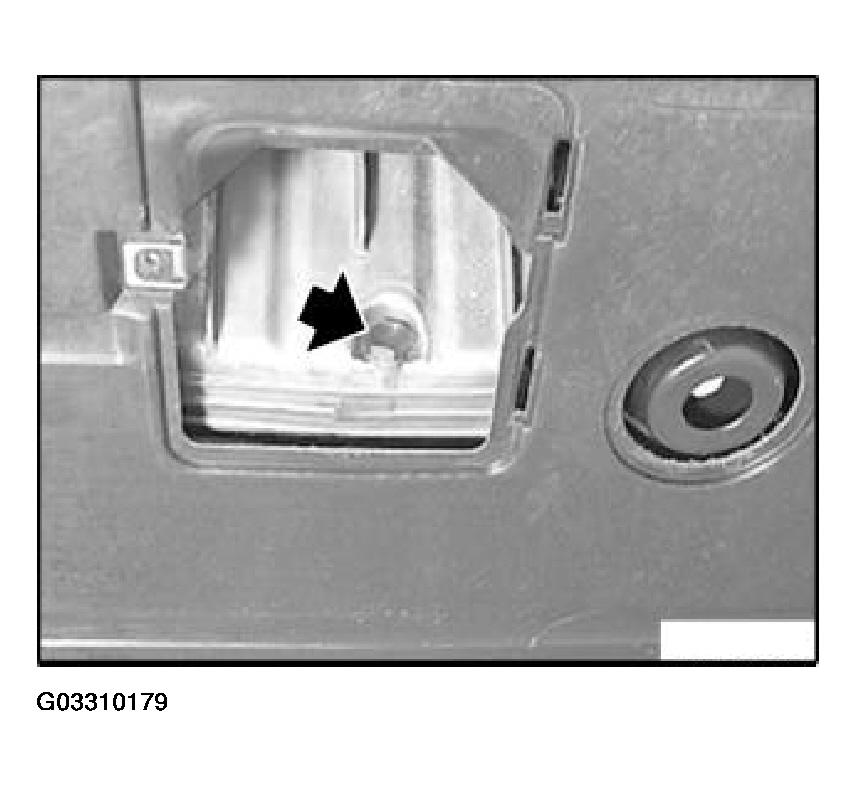

Once oil has drained from oil filter housing, open oil drain plug or draw off oil.

Fig 3: Opening Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Tightening torque: 11 13 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
