11 12 503 Disassembling and assembling cylinder head (M52 / S52 / M52TU / M54 / M56)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 1 490
11 0 192
11 0 342
11 0 343
11 0 345
11 1 045
11 1 065
11 1 067
11 1 071
11 1 441
11 1 442

(cylinder head removed)

If necessary, remove coolant thermostat.

Screw on special tool 11 1 442.

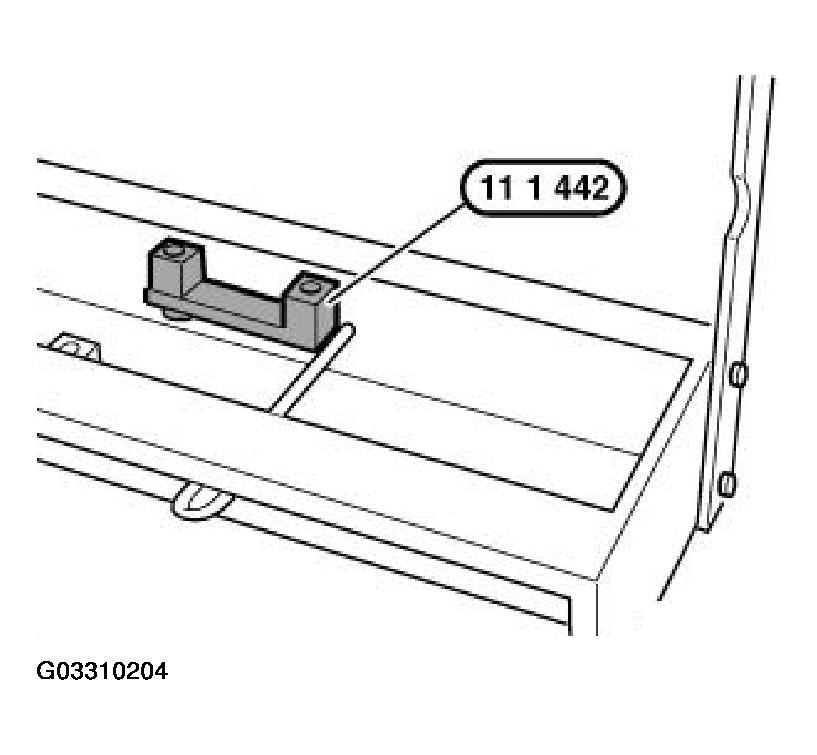

Fig 1: Installing Special Tool

G03310204

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 1 065 onto special tool 00 1 490.

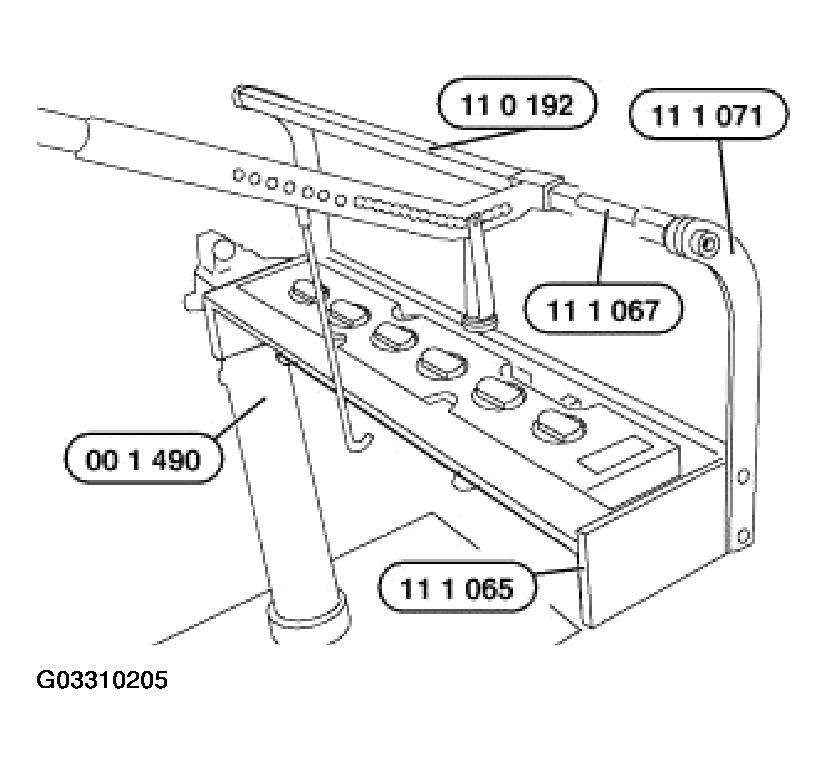

Fig 2: Assembling Special Tools For Disassembling Cylinder Head

G03310205

Courtesy of BMW OF NORTH AMERICA, INC.

Provide special tools for disassembling cylinder head:

special tool 11 1 071
special tool 11 1 067
special tool 11 0 192
special tool 11 1 045
special tool 11 0 342
special tool 11 0343
special tool 11 0345
special tool 11 1 441

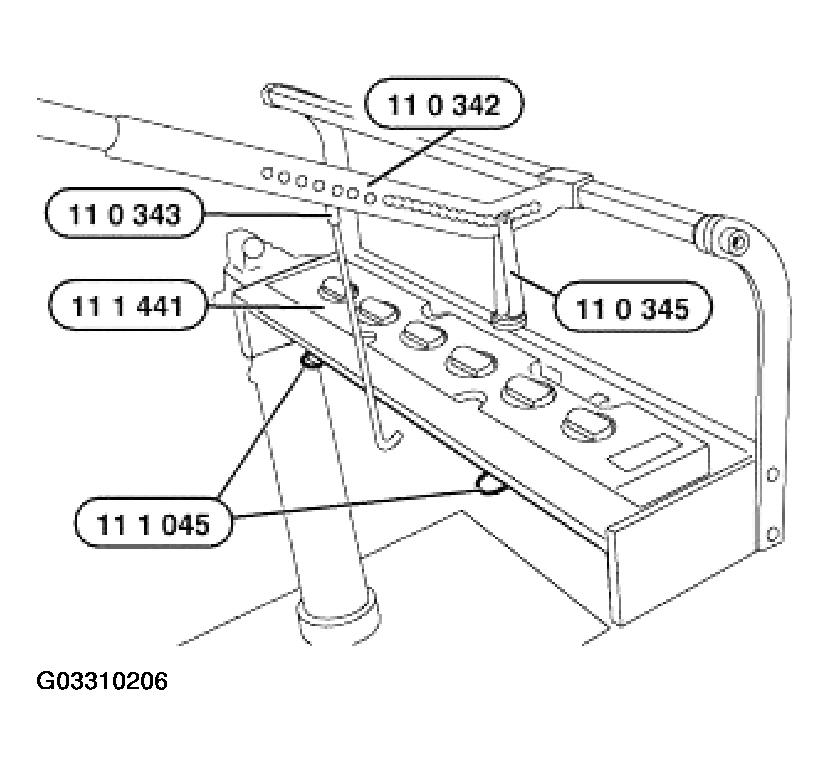

Fig 3: Assembling Special Tools

G03310206

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tools.

NOTE: Do not install special tool 11 1 441 (locating board) in special tool 11 1 065 at this stage.

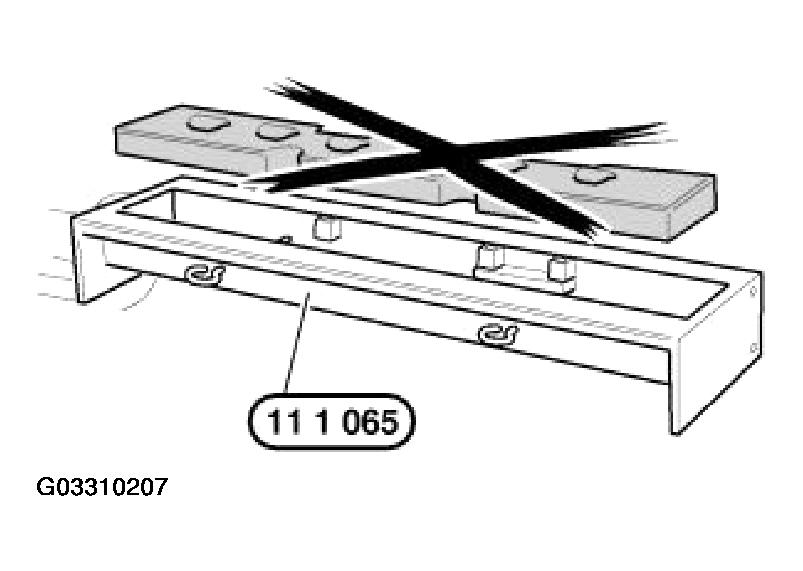

Fig 4: Precaution For Installing Special Tool

G03310207

Courtesy of BMW OF NORTH AMERICA, INC.

Place cylinder head on special tool 11 1 065 and screw on with two screws.

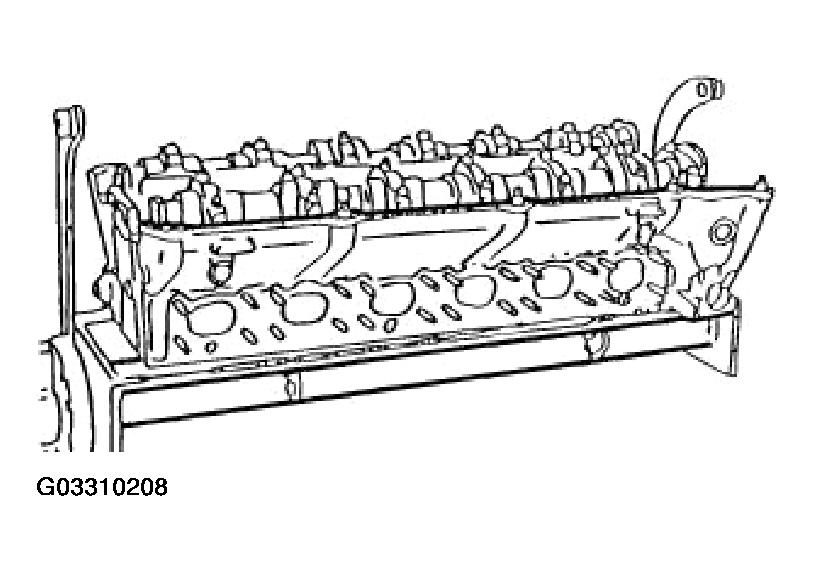

Fig 5: View Of Cylinder Head

G03310208

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all valve springs. Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M52 / S52 / M52TU / M54 / M56) .

Remove all valve stem seals. Refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M52 / S52 / M52TU / M54 / M56) .

Remove all valves. Refer to 11 34 552 REMOVING AND INSTALLING OR REPLACING ALL VALVES (M52 / S52 / M52TU / M54 / M56) .
