Removal & Installation

WARNING: This page is about a different car, the 2004 BMW X5, 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Draw off brake fluid using a syringe dedicated to brake fluid.
  2. Remove left front wheel.
  3. Remove expansion rivets (1) and release screws (2). Remove wheel arch. See Fig 1.
  4. Release screw. See Fig 2.
    5. CAUTION: Brake fluid may emerge. Do not mix up brake lines.
  5. Unlock plug connection and disconnect. Disconnect brake lines. See Fig 3.
  6. Remove precharging pump from rubber mounts.
  7. Release screws. Convert protective cap (1) and holder (2). See Fig 4.
  8. To install, reverse removal procedure. Tighten screws and brake lines to specification. See TORQUE SPECIFICATIONS .
  9. After completing work, connect brake fluid changer.
  10. Activate precharging pump with BMW Diagnosis and Information System (DIS) Tester.
  11. Bleed front axle circuit. See BLEEDING in appropriate DISC article.
  12. Tighten wheel lug bolts to specification. See TORQUE SPECIFICATIONS .

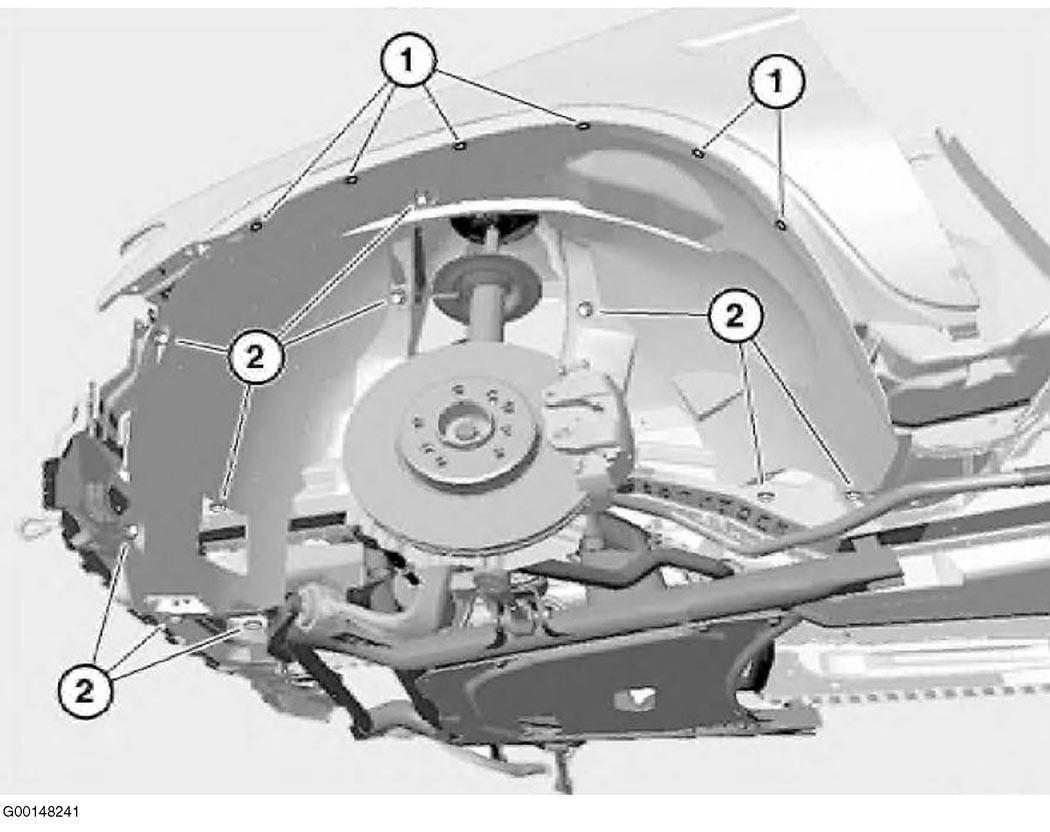

Fig 1: Removing Wheel Arch
G00148241Courtesy of BMW OF NORTH AMERICA, INC.

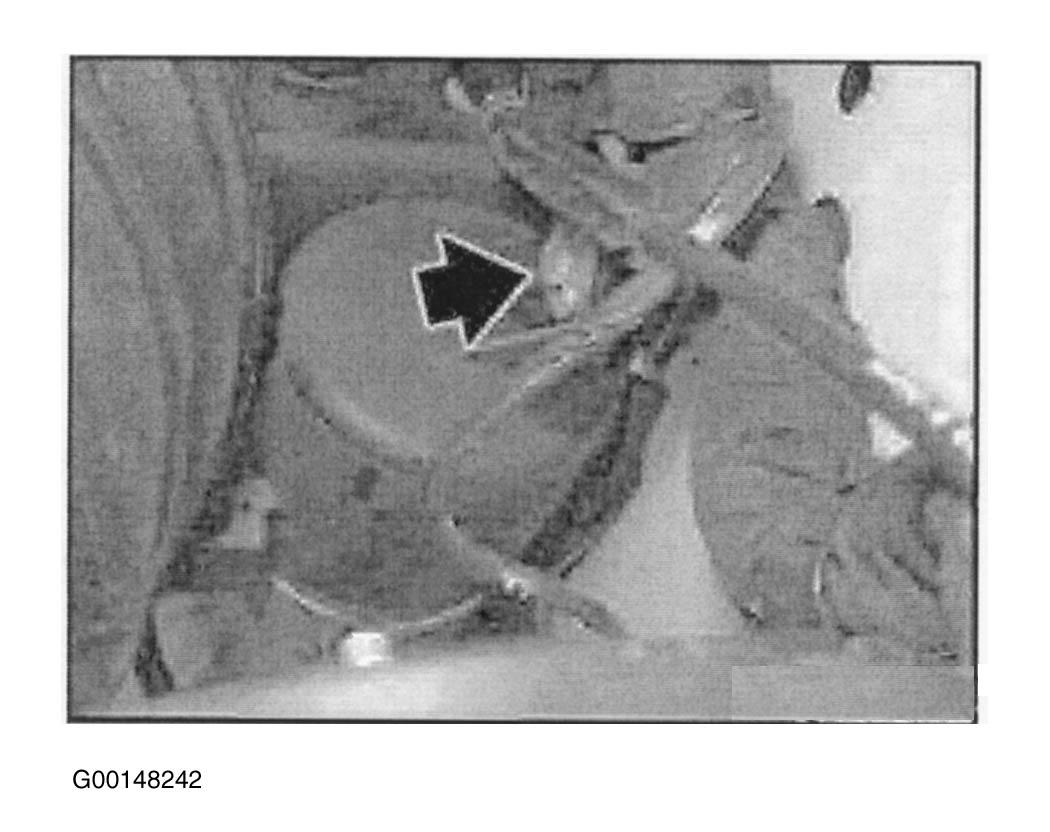

Fig 2: Locating Screw
G00148242Courtesy of BMW OF NORTH AMERICA, INC.

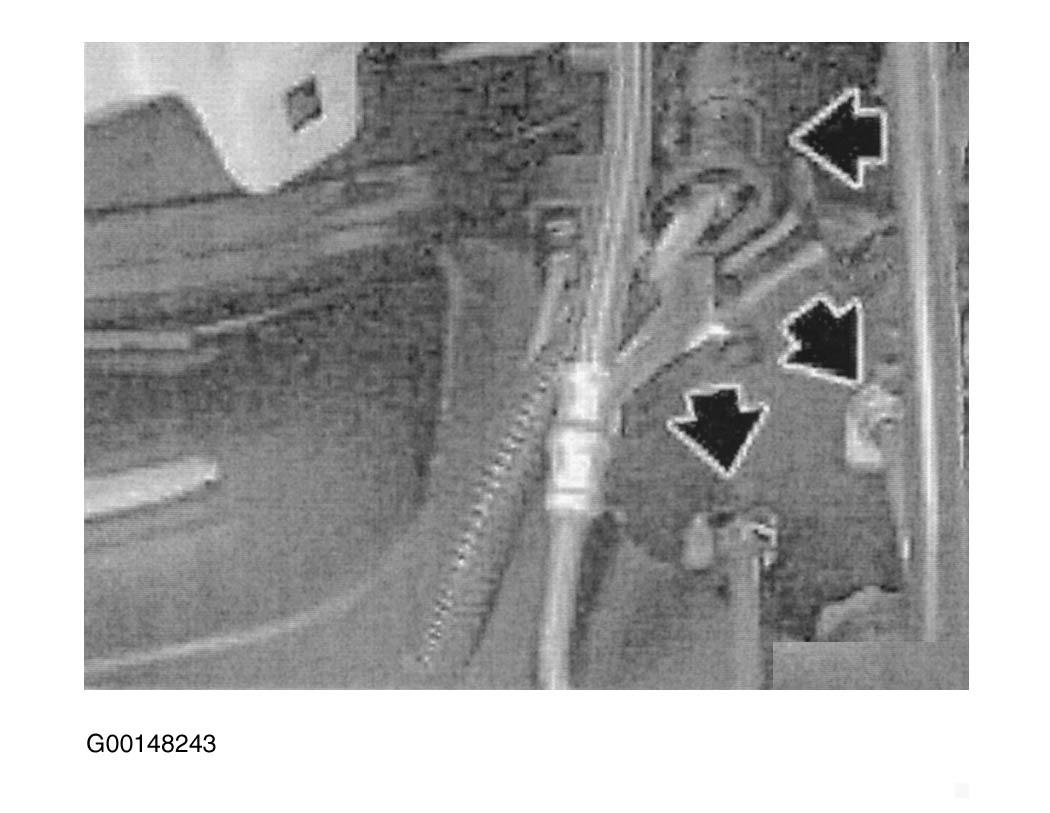

Fig 3: Locating Brake Lines & Plug Connection
G00148243Courtesy of BMW OF NORTH AMERICA, INC.

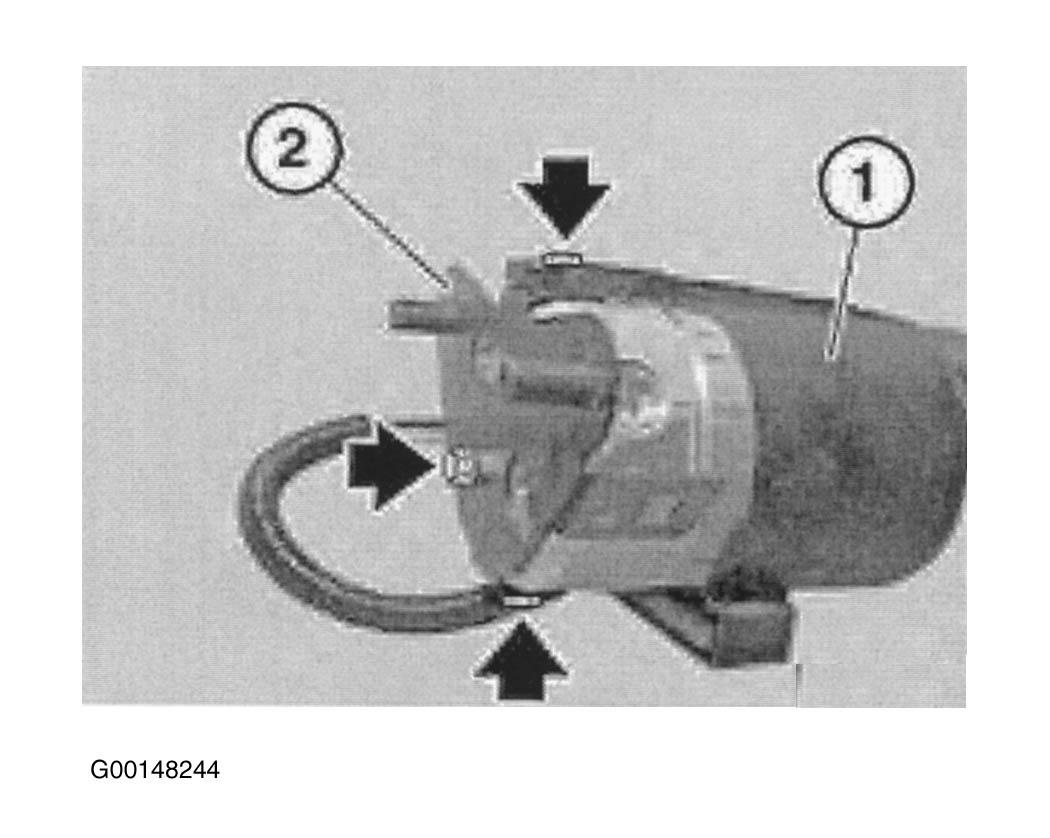

Fig 4: Locating Precharging Pump Components
G00148244Courtesy of BMW OF NORTH AMERICA, INC.
