13 6 200 Ultrasonic cleaning system

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Note: For fuel injectors complete with special detergent

Engine: M10, M20, M21, M30, M40, M41, M42, M43, M44, M50, M51, M52, M54, M60, M62, M70, M73, M88, N42, N46, S14, S38, S50B30, S50B32, S50US, S52US

Storage location: Single

SI number: 2 01 87(623)

Order number: 13 6 200

Ultrasonic cleaning system

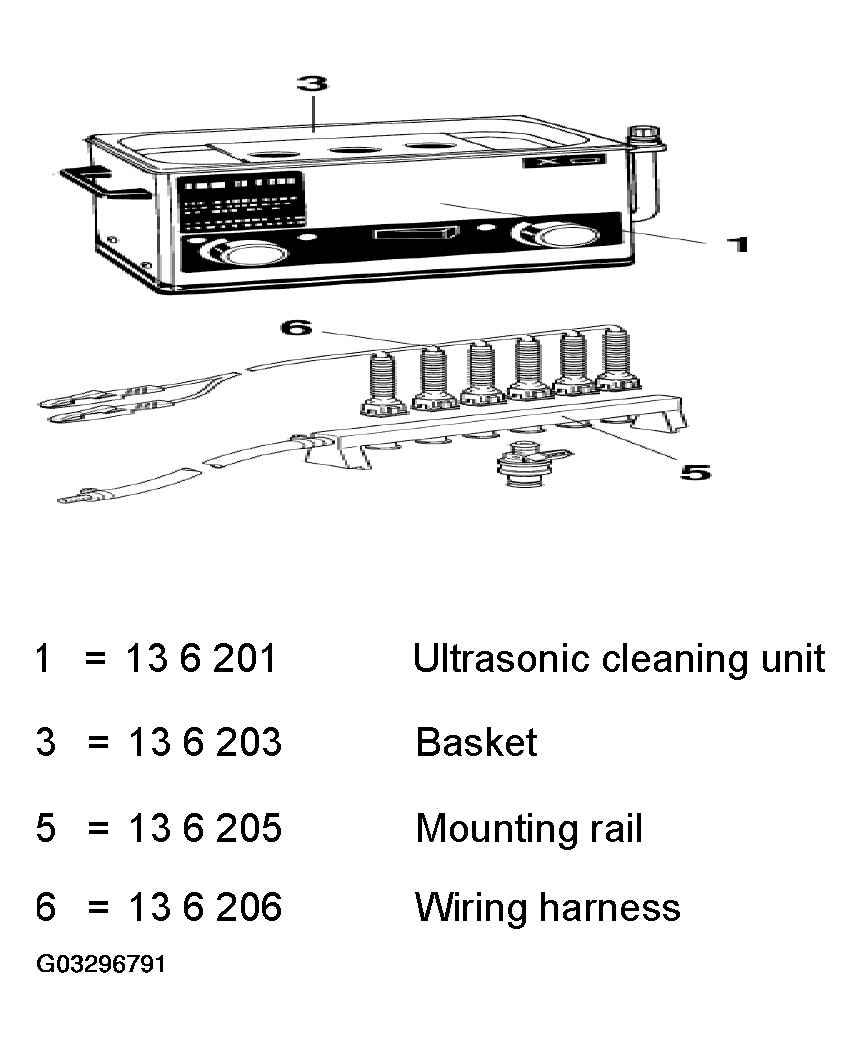

Fig 1: Identifying Ultrasonic Cleaning System

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 13 6 201 Ultrasonic cleaning unit

Note: Without special cleaner

3 = 13 6 203 Basket

Note: For diesel injection nozzles

5 = 13 6 205 Mounting rail

Note: For fuel injectors - engine: M10, M20, M30, M40, M42, M43, M44,M M50, M52,M54, M60, M62, M70, M73, M88, N42, S14, S38, S50B30, S50B32, S50US, S52

6 = 13 6 206 Wiring harness

13 6 202 Special cleaner (R 60 L) 10 ltr.

13 6 207 Cleaning agent concentrate 1 ltr.

Note: Tunop 656
