13 5 280 Plugs for fuel lines
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Note: For sealing off fuel lines when removing and installing engine - Applicable to M62 only fitted in E39 / M52 only fitted in E38 / S50B32 only fitted in E36 / N62 only fitted in E65 / M54 in E83.
Series: E36, E38, E39, E46, E60, E61, E63, E64, E65, E66, E67, E83, E85, R50, R52, R53, RR1
Engine: M52, M54, M62, N40, N42, N62, N73, S50B32, W10, W11
Storage location: B16
SI number: 1 18 96 (163)
Order number: 13 5 280

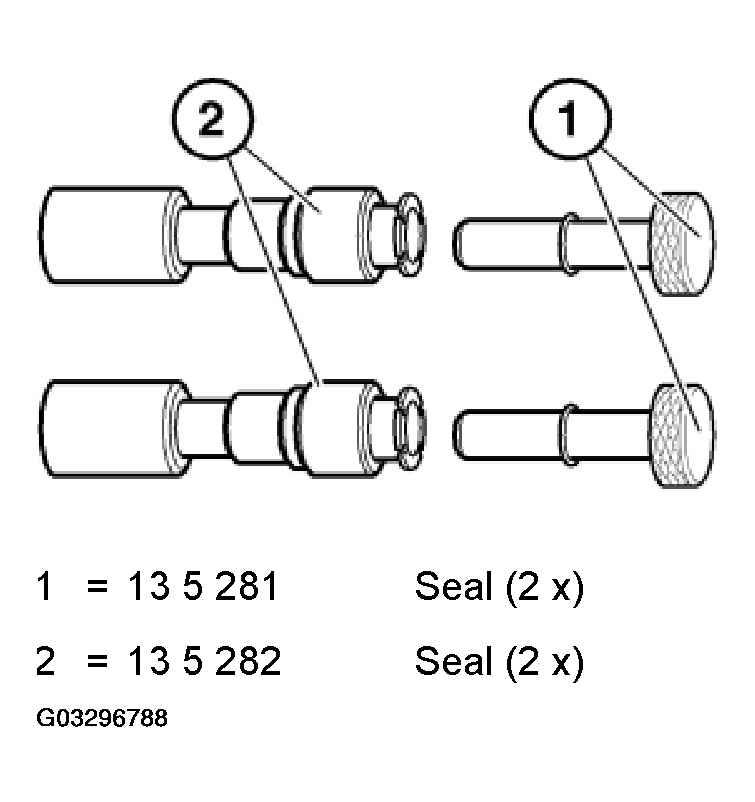

Plugs for fuel lines
Consisting of:
1 = 13 5 281 Seal (2 x)
Note: For sealing quick couplings
2 = 13 5 282 Seal (2 x)
Note: For sealing fuel lines
