13 3 060 Fixture

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking fuel pressure on K-Jetronic and L-Jetronic as well as oil pressure

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

Order number: 13 3 060

Fixture

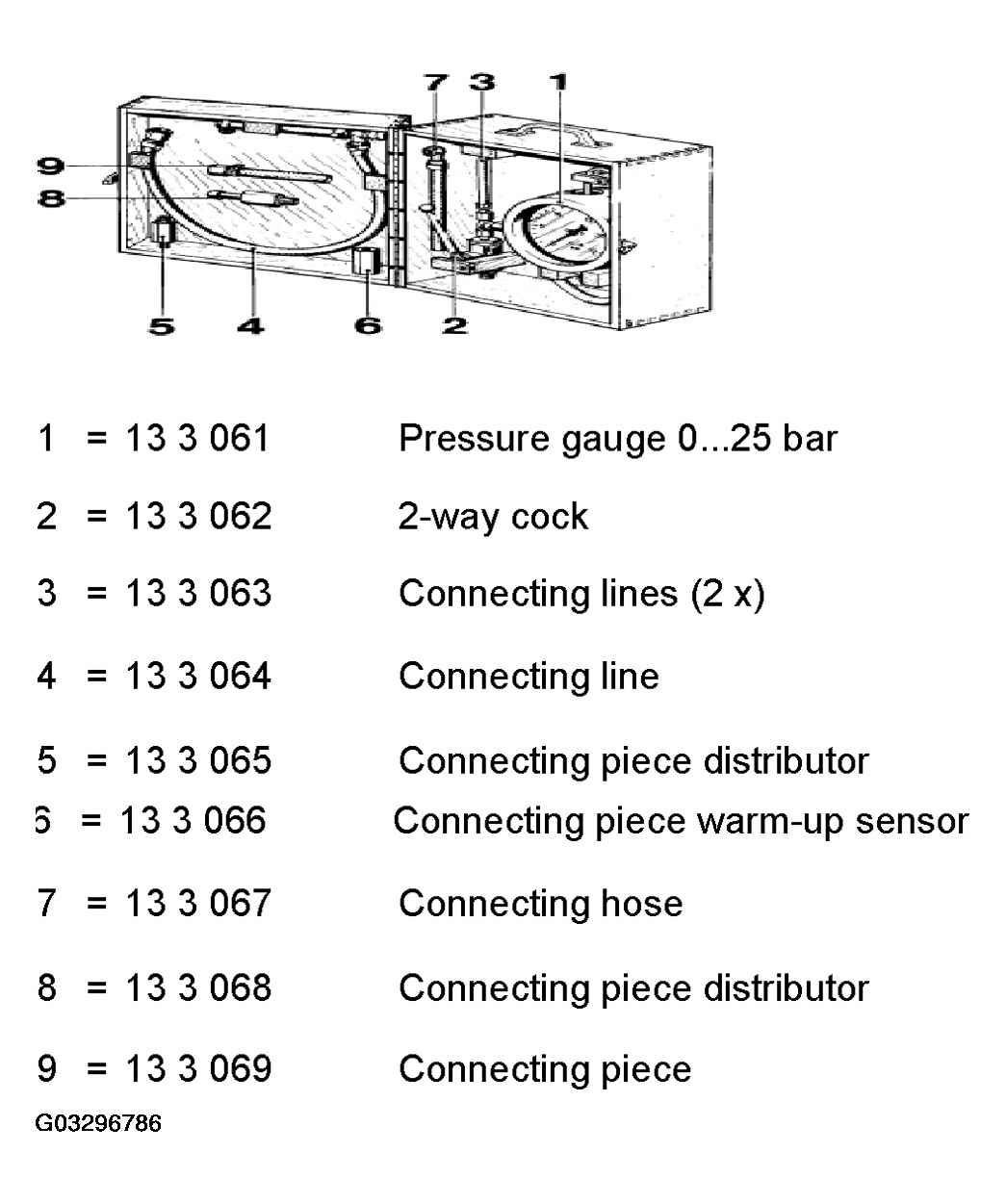

Fig 1: Identifying Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 13 3 061 Pressure gauge 0...25 bar

2 = 13 3 062 2-way cock

Note: Engine: All, except S50, S54, N73

3 = 13 3 063 Connecting lines (2 x)

Note: For fuel and oil pressure testing

4 = 13 3 064 Connecting line

Note: Mit T-piece for L-Jetronic All except N73

5 = 13 3 065 Connecting piece distributor

Note: All except N73

6 = 13 3 066 Connecting piece warm-up sensor

Note: All except N73

7 = 13 3 067 Connecting hose

Note: For checking fuel pump delivery All except N73

In conjunction with: 13 3 020

8 = 13 3 068 Connecting piece distributor

Note: All except N73

In conjunction with: BMW SERVICE TESTER

9 = 13 3 069 Connecting piece

Note: For warm-up sensor with hose all except N73

In conjunction with: BMW SERVICE TESTER
