00 9 310 Assembly wedges (set in plastic case)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For straightening and assembly jobs on vehicle bodies, e.g. fitting trim panels, removing window weatherstrips, repairing small-scale dents, removing residual adhesive materials, measuring gap widths, levering out trim panel parts

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

SI number: 1 25 05 230

Order number: 00 9 310

Assembly wedges (set in plastic case)

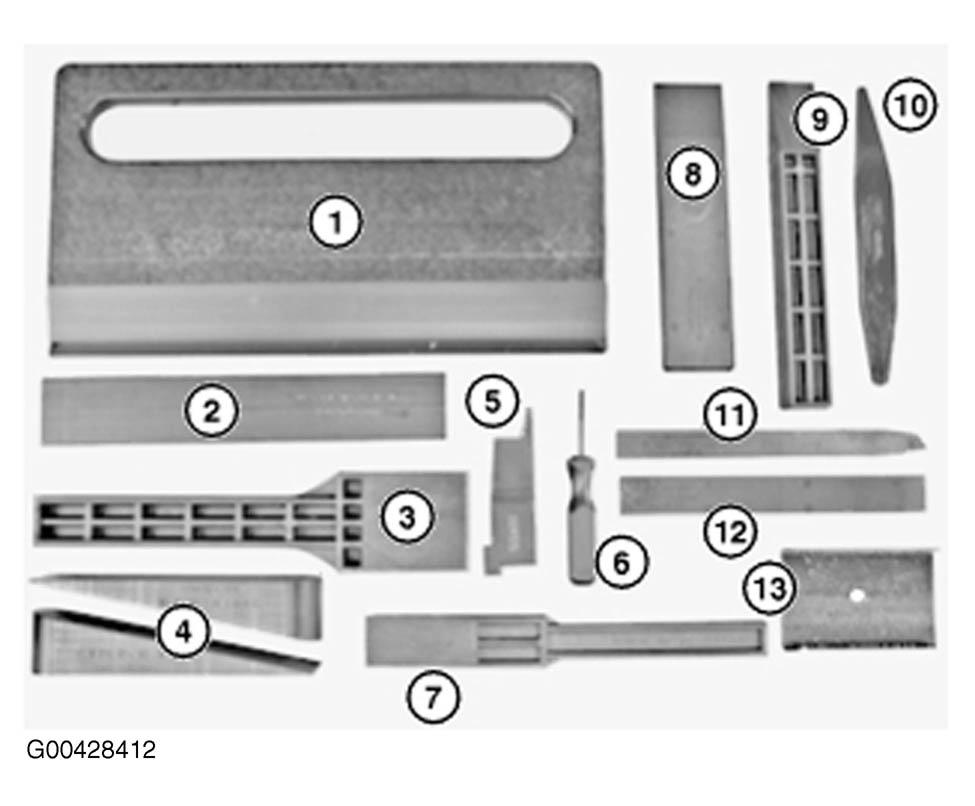

Fig 1: Identifying Assembly Wedges

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 9 311 Trim remover

2 = 00 9 312 Strike wedge, square

3 = 00 9 313 Striking wedge, large

4 = 00 9 314 Adjusting wedges (2 x)

5 = 00 9 315 Gap wedge

6 = 00 9 316 Sealing lip wedge

7 = 00 9 317 Trim panel wedge

8 = 00 9 318 Universal wedge

9 = 00 9 319 Striking wedge, small

10 = 00 9 321 Fishbone

11 = 00 9 322 Plastic wedge

12 = 00 9 323 Cleaning wedge (scraper)

15 = 00 9 324 Trim remover (metal plate)

Note: For removing stem trims from from E60

00 9 329 Case with inlay for assembly wedges

In conjunction with: 009310
