00 7 500 Universal puller Kukko 17/K

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Note: For removing bearing inner race from drive flange at rear wheel bearing

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1

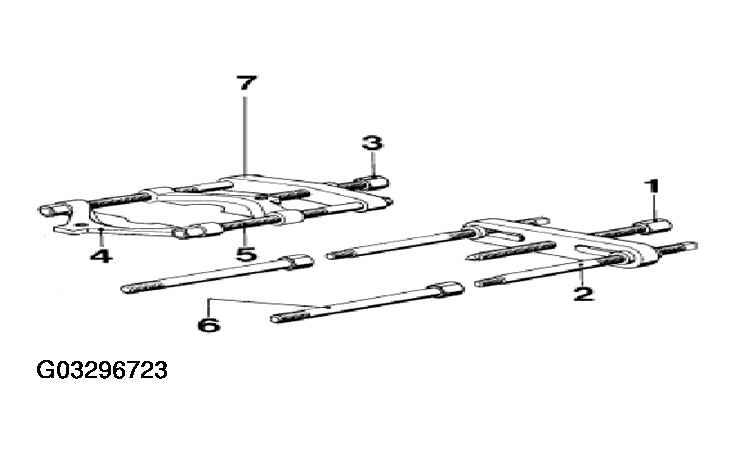

Fig 1: Identifying Universal Puller Kukko

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 00 7 500

Universal puller Kukko 17/K

Consisting of:

1 = 00 7 501 Pressure spindle with bridge

2 = 00 7 502 Adjusting spindle (2 x) with knurled nuts (4 x)

3 = 00 7 503 Pressure spindle, side

4 = 00 7 504 Adjusting jaws (2 x)

5 = 00 7 505 Adjusting screws (2 x) with nuts

Note: For adjusting jaw (2 x)

6 = 00 7 506 Extension (2 x)

7 = 00 7 507 Bridge
