00 5 010 Universal puller

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: For withdrawing radial seals 00 5 011 for E90

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

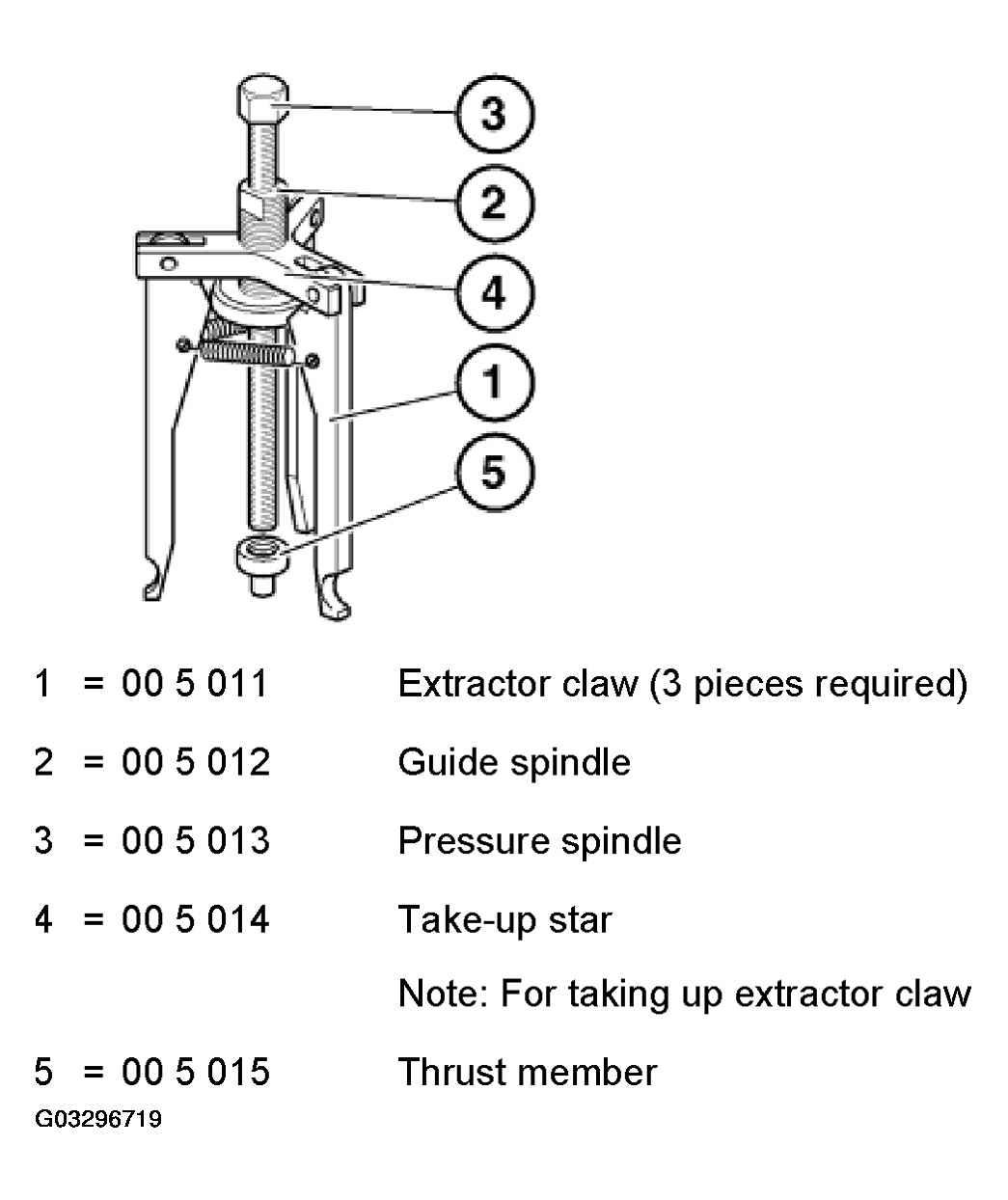

Fig 1: Identifying Universal Puller

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: B26

Order number: 00 5 010

Universal puller

Consisting of:

1 = 00 5 011 Extractor claw (3 pieces required)

2 = 00 5 012 Guide spindle

3 = 00 5 013 Pressure spindle

4 = 00 5 014 Take-up star

Note: For taking up extractor claw

5 = 00 5 015 Thrust member
