00 2 590 Plastigage (5)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Note: For checking bearing play on crankshaft and in big-end bearings

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

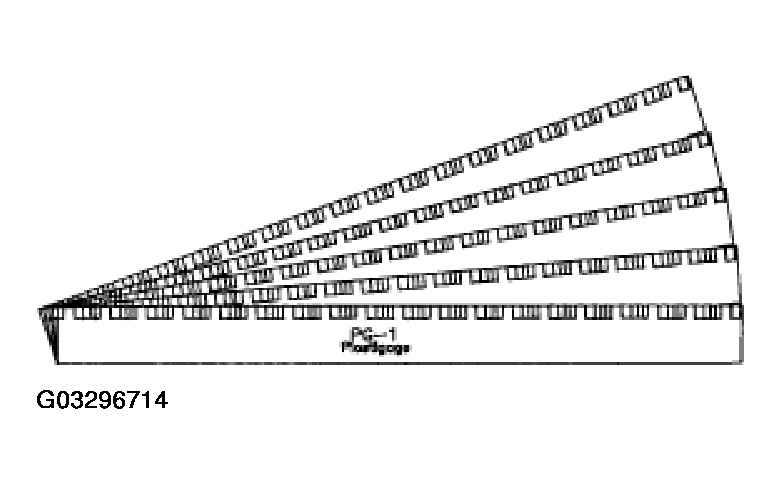

Fig 1: Identifying Plastigage
G03296714Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 00 2 590

Plastigage (5)
