00 2 480 Measurement stand with clamp

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

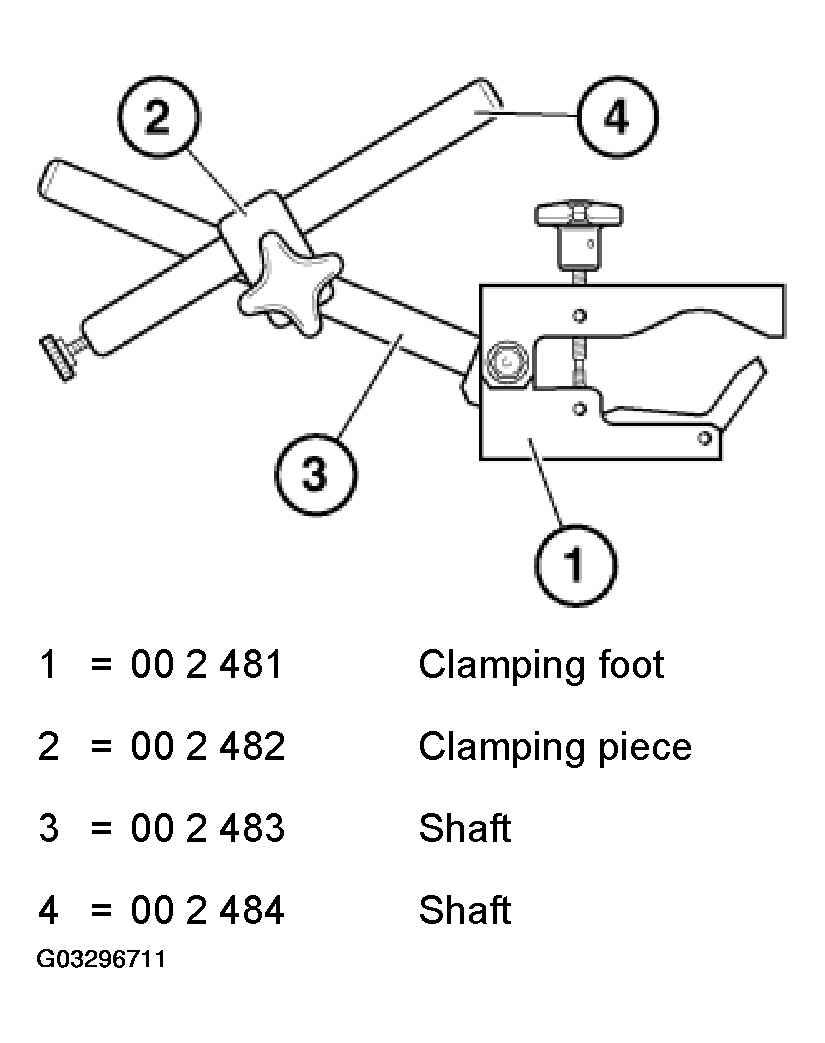

Fig 1: Identifying Measurement Stand With Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 18 99(489)

Order number: 00 2 480

Measurement stand with clamp

Consisting of:

1 = 00 2 481 Clamping foot

2 = 00 2 482 Clamping piece

3 = 00 2 483 Shaft

4 = 00 2 484 Shaft
