00 2 040 Basic take-up fixture

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 030, 33 3 270, 33 3 290, 33 3 300, 33 4 220, 33 4 230

Note: For removing and installing rear axle carrier, without pillar guide and lift hoist

Series: E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1

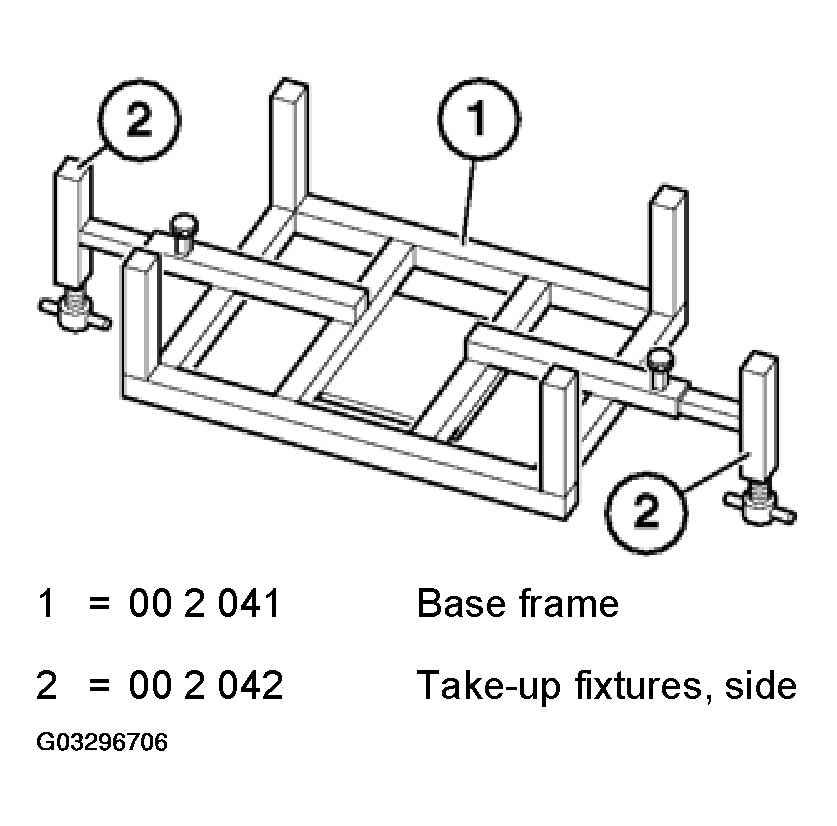

Fig 1: Identifying Basic Take-Up Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 05 90 (207)

Order number: 00 2 040

Basic take-up fixture

Consisting of:

1 = 00 2 041 Base frame

2 = 00 2 042 Take-up fixtures, side
