00 1 450 Assembly stand

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: All take-up supports

Note: For engines and transmissions

Series: E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46,E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25,M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

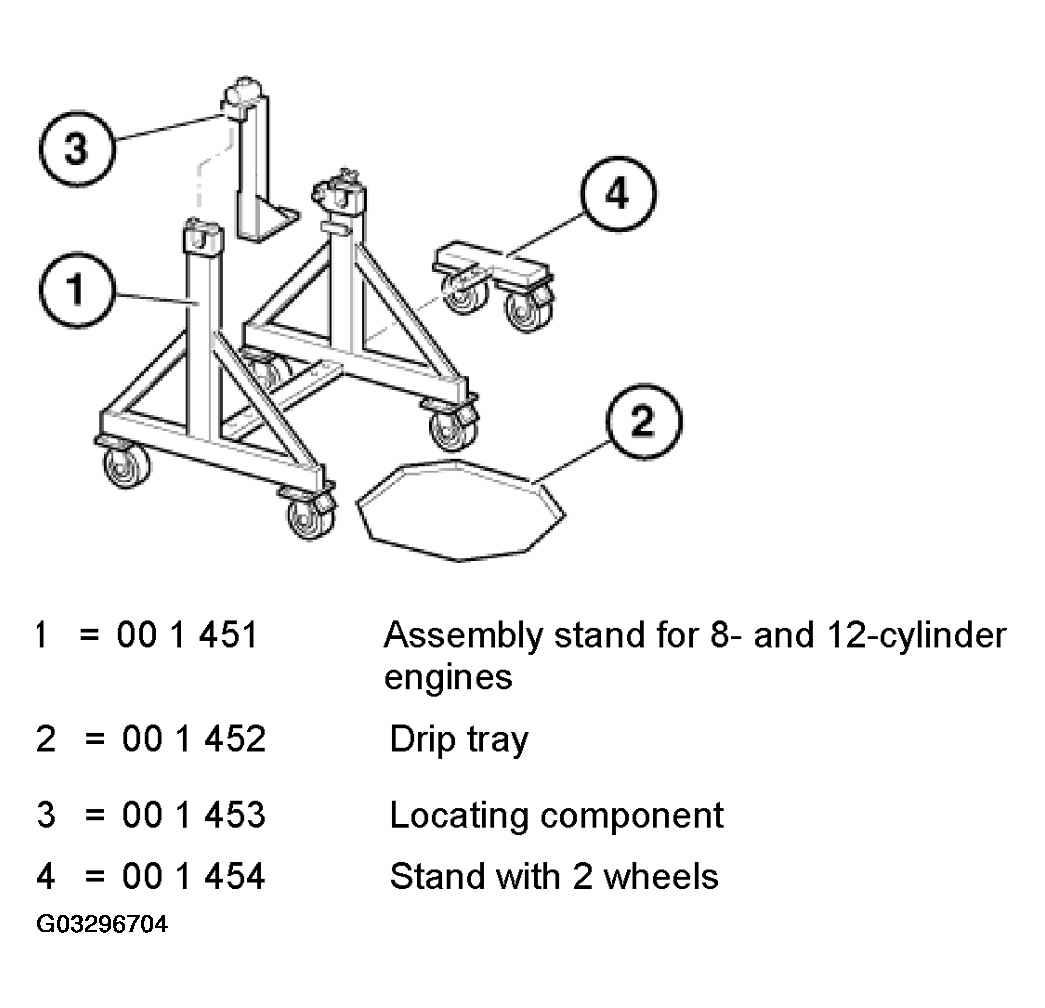

Fig 1: Identifying Assembly Stand

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 02 87 (721)

Order number: 00 1 450

Assembly stand

Consisting of:

1 = 00 1 451 Assembly stand for 8- and 12-cylinder engines

Note: Engine: M60, M62, M70, M73

In conjunction with: 11 0 080 (for 8 cylinders) / 00 1 460 (for 12 cylinders)

2 = 00 1 452 Drip tray

3 = 00 1 453 Locating component

Note: For accommodating 4- and 6- cylinder engines and transmissions,engine: M10, M20, M30, M40, M41, M42, M43, M44, M50, M52, M52, S14, S38, S50B30, S50B32, transmission: all

In conjunction with: Mountings for engine and transmission

4 = 00 1 454 Stand with 2 wheels

Note: For accommodating 4- and 6- cylinder engines and all transmissions
