00 0 200 Cross member

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

Note: To hold the engine when removing and installing the front axle support, the oil sump and the transmission

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47T2, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17

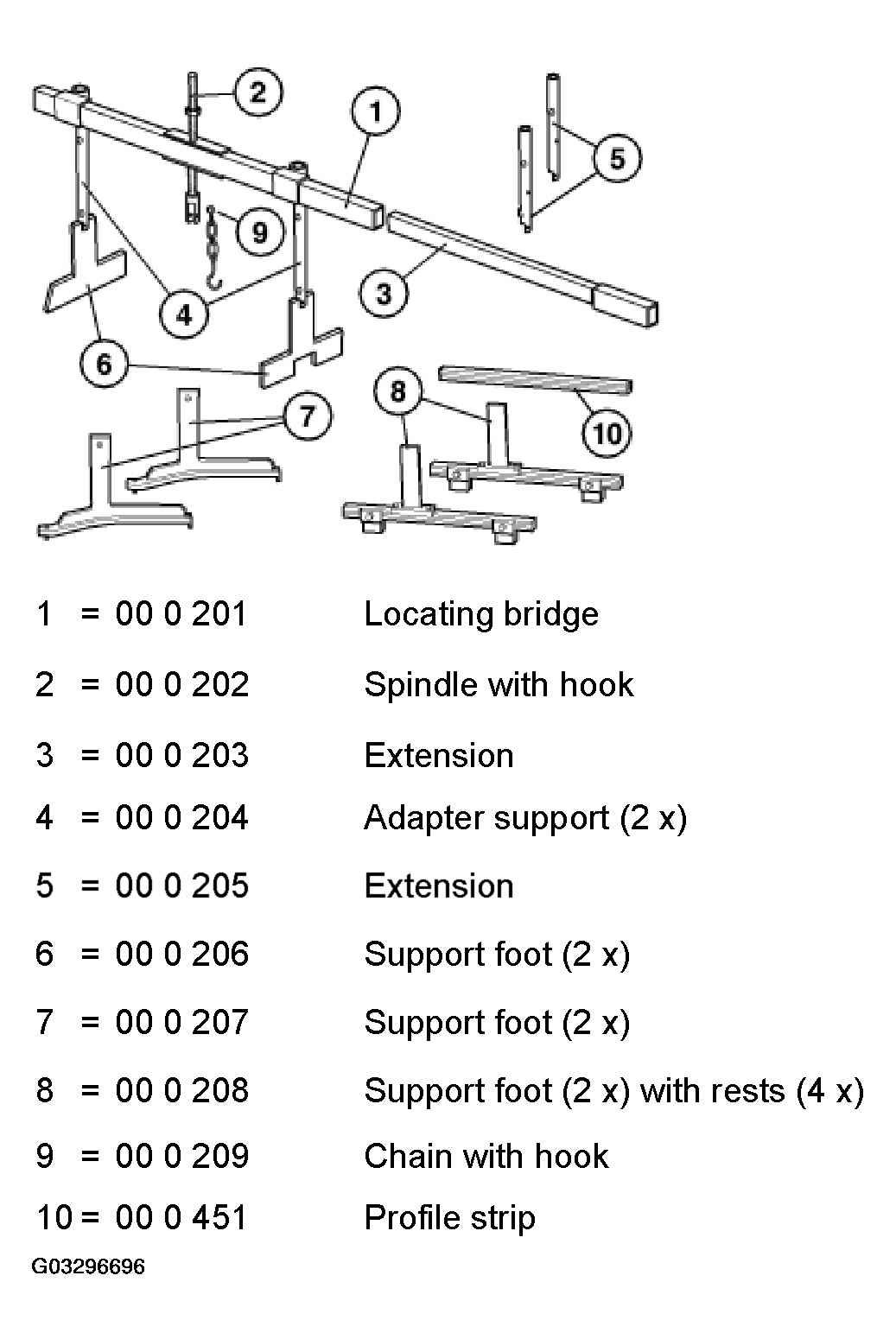

Fig 1: Identifying Cross Member - Minimum Set: Mechanical Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Storage location: Single

SI number: 1 14 01 (766)

Order number: 00 0 200

Cross member

Consisting of:

1 = 00 0 201 Locating bridge

2 = 00 0 202 Spindle with hook

3 = 00 0 203 Extension

Note: For extending locating bridge 00 0 201 Model series: E65

4 = 00 0 204 Adapter support (2 x)

In conjunction with: 00 0 200

5 = 00 0 205 Extension

Note: Model series: R50, R53

6 = 00 0 206 Support foot (2 x)

Note: Model series: E30, E31, E32, E34, E36, Z3 6-cylinder engines only

7 = 00 0 207 Support foot (2 x)

Note: Model: Z3 / 4-cylinder engines only

8 = 00 0 208 Support foot (2 x) with rests (4 x)

Note: Model series: E38, E39, E46, E60, E65

9 = 00 0 209 Chain with hook

Note: Version as 11 0 003

10 = 00 0 451 Profile strip

Note: Model series: E85
