00 0 190 Cable cabinet I, complete

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Note: With set of films and accessories - For storing adapter cables as well as measuring devices and testers

SI number: 0 02 99 (399)

Order number: 00 0 190

Cable cabinet I, complete

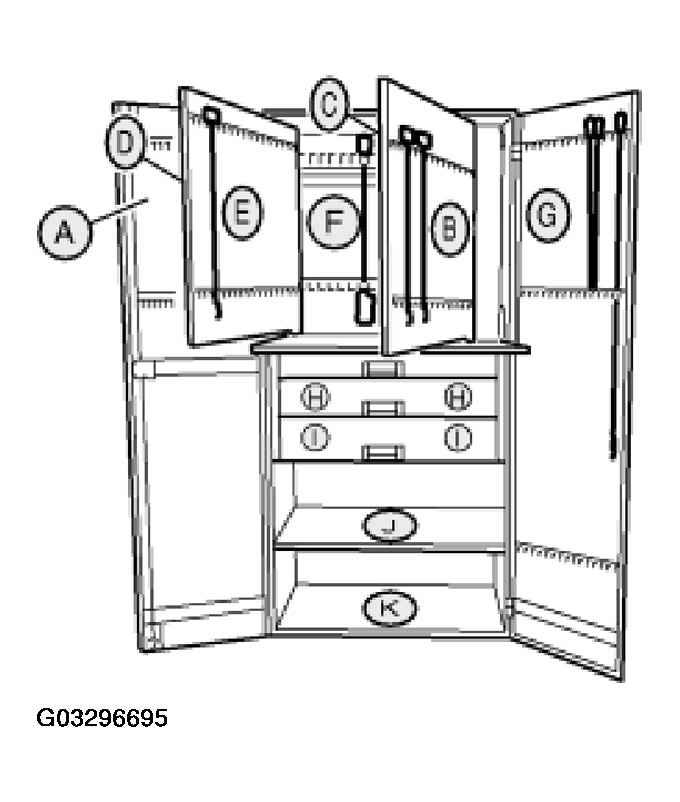

Fig 1: Identifying Cable Cabinet I

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 00 0 191 Cable cabinet

Note: Without contents or accessories Basis for cable cabinets I and II

2 = 00 0 192 Set of films I

Note: For identifying storage locations in cable cabinet I - valid status in each case

3 = 00 0 193 Cable holder set - H -

Note: For cable cabinet I only 24 guide rails each with 15 retaining straps for accommodating adapter leads

4 = 00 0 194 Cable carrier - B -

Note: For accommodating engine test leads For extending cable suspensions in cable cabinets I and II

6 = 00 0 195 Swivel board frame

Note: Carrier of cable suspensions in cable cabinets I and II

7 = 00 0 196 Drawer block

Note: For cable cabinet I only

8 = 00 0 197 Magnet with roller

Note: For improved location and spacing of swivel boards - For retrofitting in cable cabinets I and II only

9 = 00 0 198 Compartment floor

Note: For cable cabinet I only

10 = 00 0 199 Index

Note: For finding BMW special tools for automotive electrics in cable cabinets I and II
