00 0 060 Special tool board V complete

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 0 230 This board can be used in a min. 4 m long moving special tool cabinet.

Note: Size 2 m x 1 m

Series: All models

Storage location: Tool cabinet

Order number: 00 0 060

Special tool board V complete

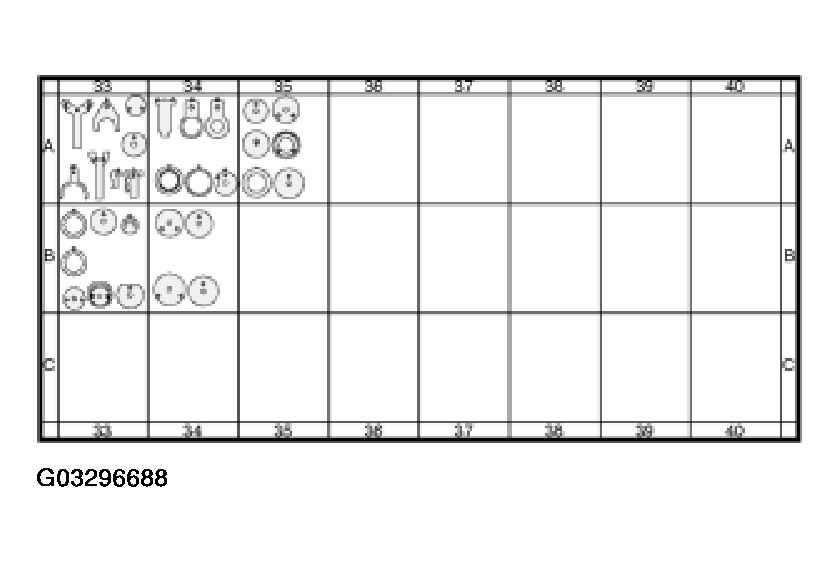

Fig 1: Identifying Special Tool Board V

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

3 = 00 0 063 Hook set for films 13, 14 and 15

4 = 00 0 064 Film 13 (left)

Note: For fields A/B/C 33... 35

5 = 00 0 065 Film 14 (centre)

Note: For fields A/B/C 35/36 and 37/38

6 = 00 0 066 Film 15 (right)

Note: For fields A/B/C 38... 40

7 = 00 0 224 Large special tool board 2 m x 1 m

Note: This special tool board serves as the back panel of basic and mounting frames and is the basis for large fixed and moving special tool boards.

In conjunction with: Hook set and films
