41 00... Frame Alignment Control Body Dimensions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

less than 1000 mm ± 1 mm
Greater than 1000 mm ± 2 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centrepoint of the bore/screw.

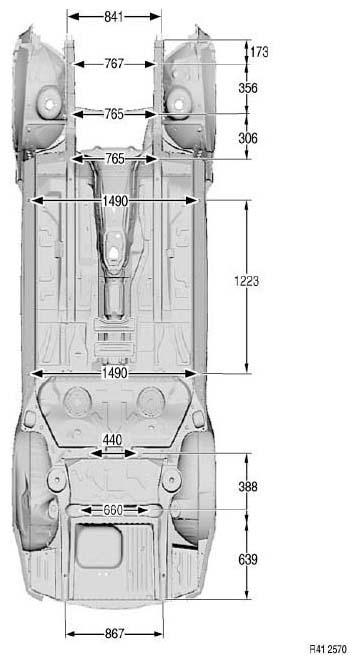

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

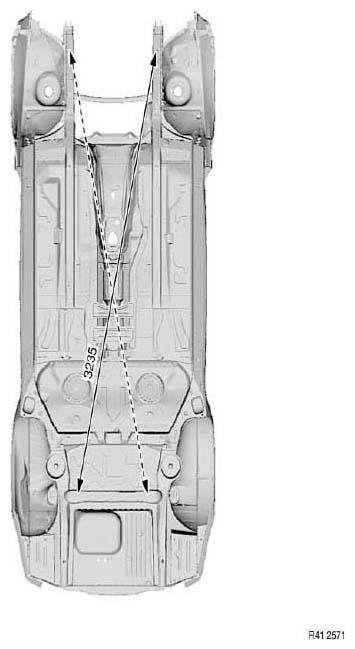

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

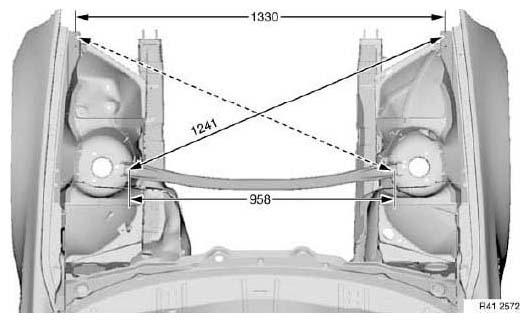

Top View, Front End

Fig 3: Engine Compartment Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1533 mm between screw-on points of door brakes.
