41 00... Body Gap Dimensions - Rep-Rep-RAE8341-4106200 - V.1

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm

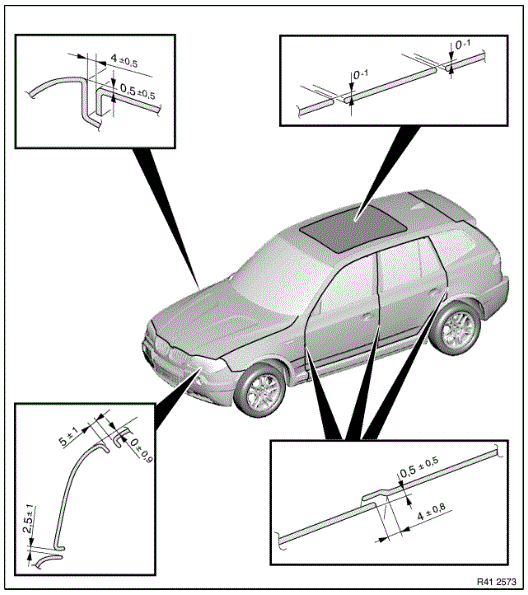

Fig 1: Front View Exterior Body Panel Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

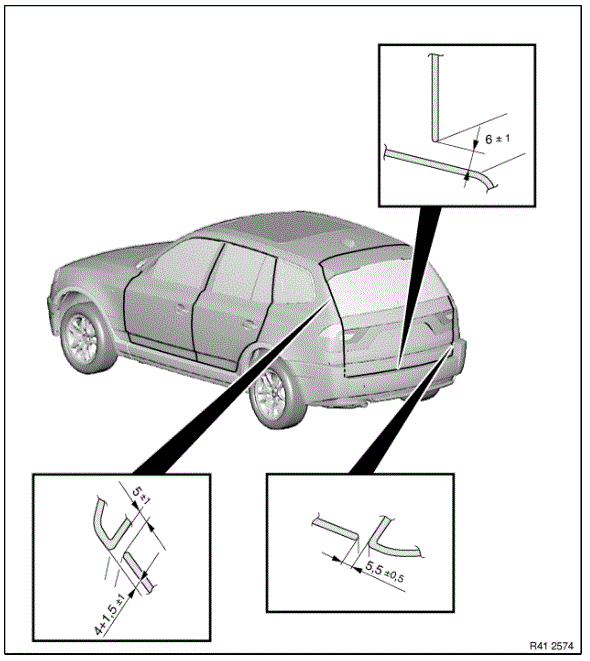

Fig 2: Rear View Exterior Body Panel Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.
