63 21 180 Removing and installing/replacing left or right rear light (in side panel)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Remove FLAP IN LUGGAGE COMPARTMENT PANEL .
Remove warning triangle.

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 1AZ .

Remove rear light (3) in outwards direction from side panel.

Installation:

Make sure gap is uniform all round between rear light (3) and side panel.

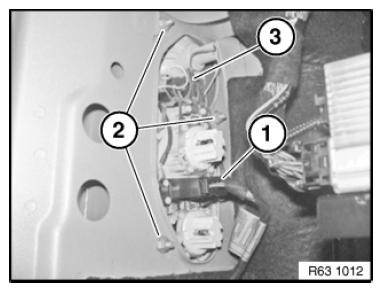

Fig 1: Identifying Rear Light, Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (1) is correctly seated on rear light (2).

Make sure guide (3) is correctly seated on side panel.

Fig 2: Identifying Rear Light, Seal And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .
