72 12... Overview of airbag modules, airbag control unit, belt tensioners

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

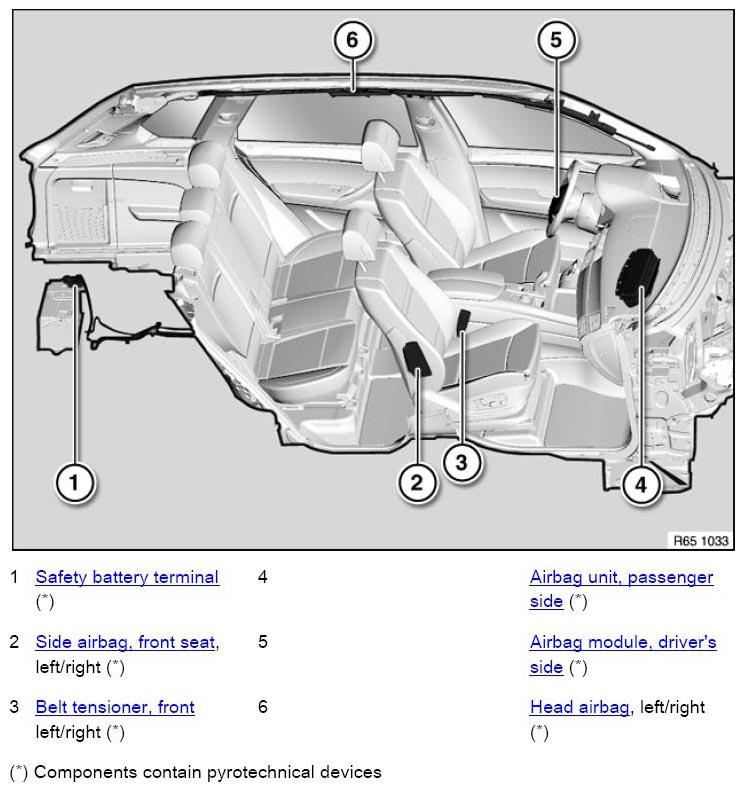

Fig 1: Overview Of Airbag Modules, Airbag Control Unit And Belt Tensioners
G08531086Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions and general information  . See 72 12... DEACTIVATING FRONT PASSENGER AIRBAGS WITH KEY SWITCH , 72 00... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS , 72 SAFETY PRECAUTIONS AND GENERAL INFORMATION , 72 12... NOTES ON SCRAPPING VEHICLES WITH GAS GENERATORS (AIRBAG SYSTEM) or 72 12... PROCEDURE AFTER AIRBAG DEPLOYMENT AS RESULT OF AN ACCIDENT .

OVERVIEW OF SENSORS FOR AIRBAG SYSTEM .
