52 30 020 Removing and installing gap cover for floor panel on left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove luggage compartment floor panel

Release screws (1).

Remove gap cover (2).

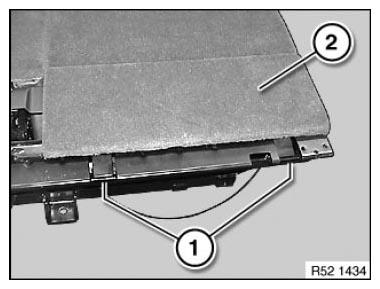

Fig 1: Identifying Gap Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
