54 10 170 Removing and installing front glass slide/tilt sunroof cover
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Remove GAITER .
NOTE:
The following steps can be carried out inside the vehicle with the glass roof panel fully closed.
Open floating headlining fully.
Make sure that grease at the ends of the rail do not come into contact with the roofliner.
Not necessary for replacement:
Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.
Open floating headlining fully.
Make sure that grease at the ends of the rail do not come into contact with the roofliner.
Not necessary for replacement:
Before removing the Torx screws, make a mark around the washers in order to ensure correct alignment during installation.

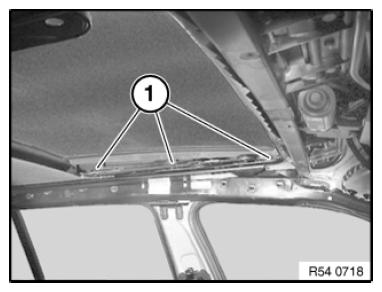

Remove and dispose of the Torx screws (1) securing the glass slide/tilt sunroof cover to the mechanism.
Installation note:
Insert new Torx screws with Loctite and align washers to markings.
Tightening torque 54 12 01AZ .
IMPORTANT:
A second person is required to help in removing and installing the glass slide/tilt sunroof cover!

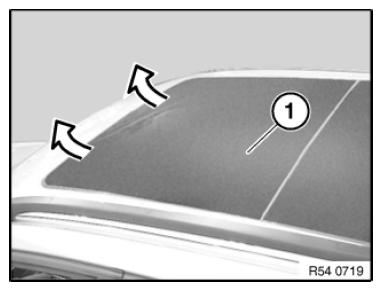

Lift out glass slide/tilt sunroof cover (1).
Installation note:
Tape off installation area on left and right at roof aperture with fabric adhesive tape.
Ensure correct seat of glass slide/tilt sunroof cover slider.
Install glass slide/tilt sunroof cover carefully (twist in) as gasket can be damaged during installation.
Check glass slide/tilt sunroof cover for correct ALIGNMENT and adjust if necessary.
