54 13 050 Replacing gasket for rear slide/tilt sunroof lid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Open glass slide/tilt sunroof

NOTE: Follow REPAIR INSTRUCTIONS for bonded sealing on glass slide/tilt sunroof.

Remove sealing (1) from slide/tilt sunroof lid.

Installation note:

Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Department).

Press sealing without stretching (squashing).

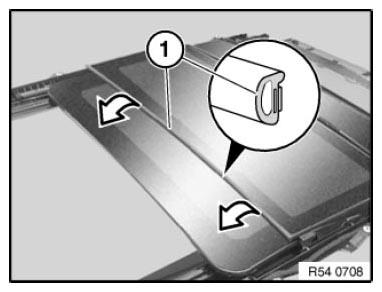

Fig 1: Removing Sealing From Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not touch adhesive area.
Surface temperature ≥20 °C
Incorrect bonding of the sealing will result in leaks.

After installation:

Completely move glass slide/tilt sunroof cover. ADJUST glass slide/tilt sunroof cover.
