51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks

Remove FRONT DOOR SILL COVER STRIP .
Remove TRIM PANEL FOR PEDAL MECHANISM .

Detach edge protection (1) in area of footwell trim.

Release screw (2) and remove release lever (3).

Fig 1: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unclamp clamps (2) with special tool 00 9 317 .

Remove trim panel (3) towards inside.

Fig 2: Removing Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

clamps (1) on trim panel (2) must not be damaged.

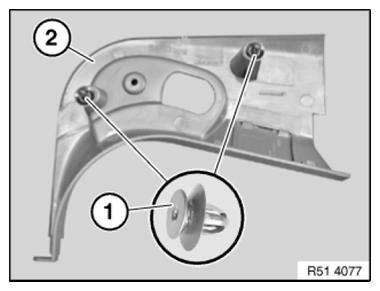

Fig 3: Identifying Trim Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
