51 49 017 Removing and installing/replacing trim panel for rear window frame on (inside) left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Detach trim panel (1) from retainers (2) towards inside.

Installation:

If necessary, replace faulty retainers (2).

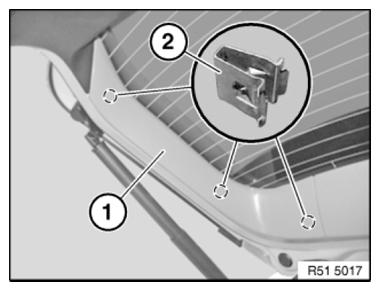

Fig 1: Identifying Trim Panel And Retainers
G08529441Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) on panel (2) must not be damaged.

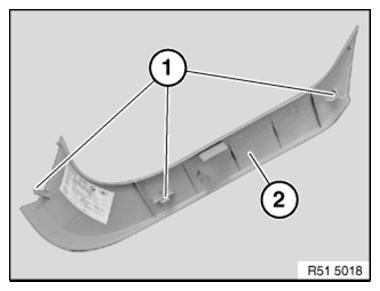

Fig 2: Identifying Lugs And Panel
G08529442Courtesy of BMW OF NORTH AMERICA, INC.
