51 22 180 Removing and installing/replacing cover on outside handle, left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

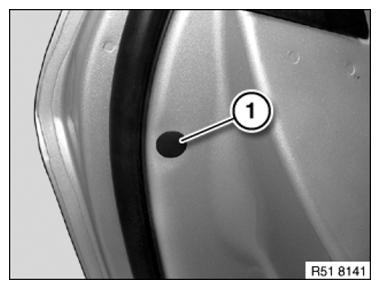

Lever out cap (1) and release screw underneath.

Fig 1: Identifying Outside Handle Cap

Courtesy of BMW OF NORTH AMERICA, INC.

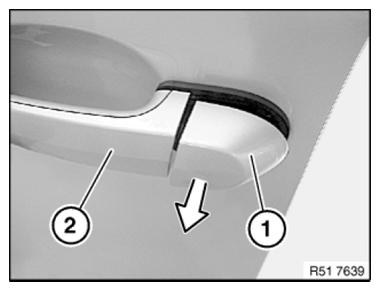

Pull out cover (1) in direction of arrow with outside door handle (2) opened slightly.

Fig 2: Pulling Out Outside Door Handle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with light package:

Installation:

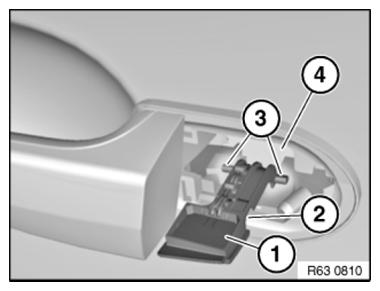

Make sure door handle light (1) is correctly positioned in area (2).

Guides (3) must be correctly seated in carrier for outside door handle (4).

Fig 3: Identifying Outside Door Handle, Light And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

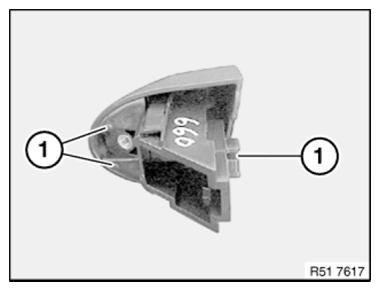

Guides (1) must not be damaged.

Fig 4: Identifying Outside Door Handle Guides

Courtesy of BMW OF NORTH AMERICA, INC.
