51 12 825 Removing and installing/replacing guide for rear center bumper

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR BUMPER TRIM .

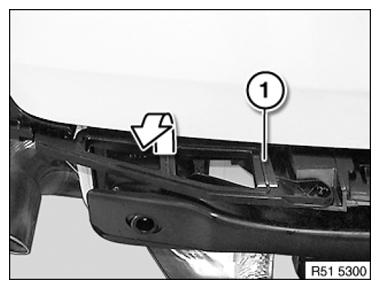

Unclip outer support (1) and remove.

Installation:

Make sure support is correctly seated.

Fig 1: Removing Outer Support

Courtesy of BMW OF NORTH AMERICA, INC.

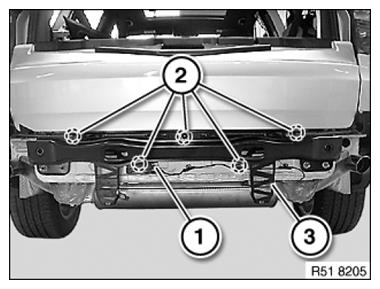

If necessary, disconnect plug

connection (1) from aerial for comfort access.

Unscrew nuts (2).

Feed out guide (3) towards bottom.

Tightening torque 51 12 5AZ .

Fig 2: Identifying Plug Connection, Guide And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
