51 16 202 Removing and installing/replacing front cup holder

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRE CONSOLE .
Remove SIDE TRIM FROM CENTRE CONSOLE on left and right

Release screws (1).

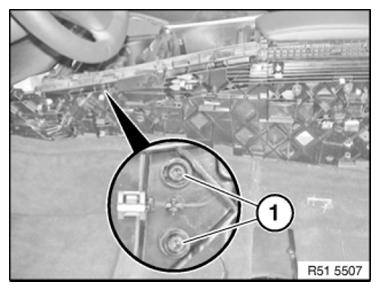

Fig 1: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

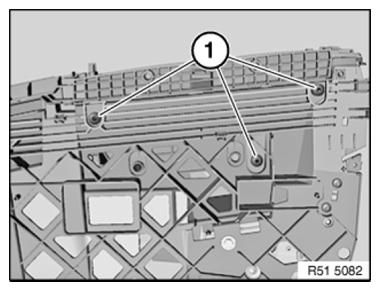

Fig 2: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

E71 only:

Release left and right screws (1).

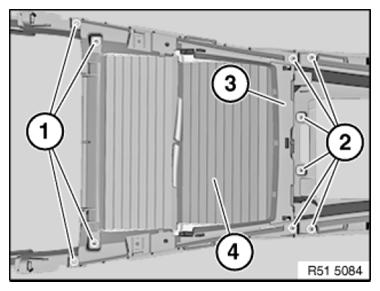

Fig 3: Identifying Front Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2) and remove center console function carrier (3).

Remove front cup holder (4).

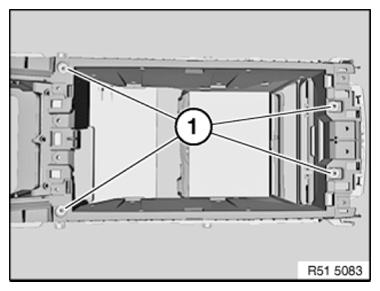

Fig 4: Identifying Front Cup Holder, Centre Console Function Carrier And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
