51 16 060 Removing and installing/replacing inside mirror (with rain sensor)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Work may only be carried out at a room/object temperature of 18... 28 ° C.
If this can not be guaranteed (cold/hot countries), it is necessary to equalize the temperature of the windscreen, mirror base and inside mirror (e.g. vehicle left to stand indoors or in the shade for at least 30 minutes).

Version with remote key for central locking system:

If necessary, disconnect negative lead from BATTERY .

Version with compass:

Check compass function if replacing or after disconnecting inside mirror plug connection or battery.

If necessary, calibrate compass in interior rearview mirror See 51 16... CALIBRATING COMPASS IN INSIDE MIRROR (UP TO 09/08) or 51 16... CALIBRATING COMPASS IN INTERIOR REARVIEW MIRROR (FROM 09/08) .

E60 Security version:

Rain sensor is not installed, cable connection is tied back in headlining.

IMPORTANT: To avoid windscreen breakage:
Screw inside mirror off mirror mount.
Inside mirror must not be pulled or pressed off towards front or rear.

Press on end caps (1) and at same time press them apart; this releases clip connection of both caps (1).

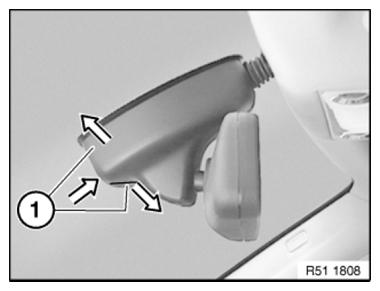

Fig 1: Removing End Caps Clip Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Twist inside mirror (1) at an angle towards front and right/top.

Swivel left end cap (2) off ball neck in direction of arrow; this detaches the engagement clip (3) from the metal foot.

Fig 2: Removing Inside Mirror Left End Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Twist inside mirror (1) at an angle towards front and left/top.

Swivel right end cap (2) off ball neck in direction of arrow; this detaches the engagement clip from the metal foot.

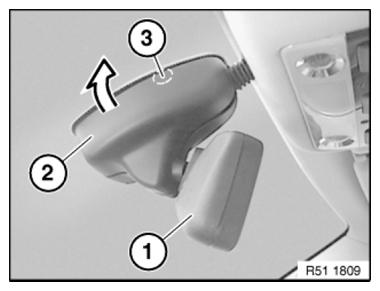

Fig 3: Removing Inside Mirror Right End Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and retaining hooks (2) of end caps (3) must not be damaged, replace if necessary.

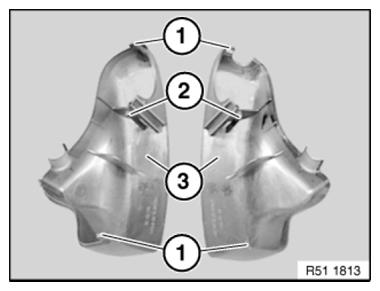

Fig 4: Identifying Inside Mirror End Cap, Clips And Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

NOTE: Pay attention to cable routing (2) for rain sensor.

E60 Security version:

Rain sensor is not installed, cable connection is tied back in headlining.

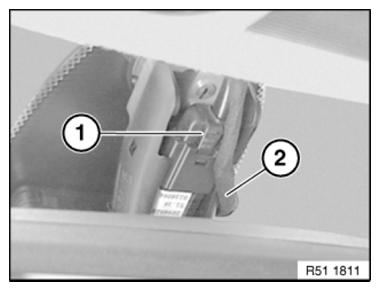

Fig 5: Identifying Rain Sensor Plug Connection And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull or press inside mirror off towards front or rear.

Twist mirror base approx. 45° to right until mirror base is released from mirror mount.

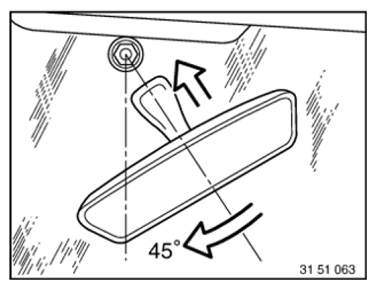

Fig 6: Twisting Mirror Base

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Twist mirror foot by approx. 45° and fit to mirror base.
Turn mirror base until it engages on mirror mount.

Fig 7: Engaging Mirror Base On Mirror Mount
Courtesy of BMW OF NORTH AMERICA, INC.

Only in case of replacement with version with remote control for central locking

If necessary, initialize all transmitters (ignition keys), refer to Owner's Handbook.
