51 45 075 Removing and installing carrier for instrument panel

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM

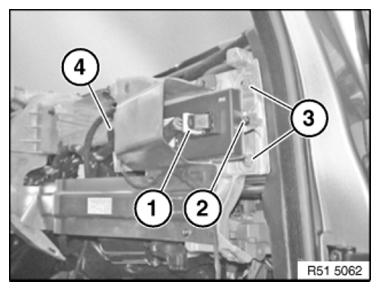

Disconnect plug connection (1).

Release screw (2) and remove control unit.

Unscrew nuts (3).

Tightening torque 51 45 1AZ .

Unclip wiring harness (4).

Fig 1: Identifying Control Unit Wiring Harness, Plug Connection, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

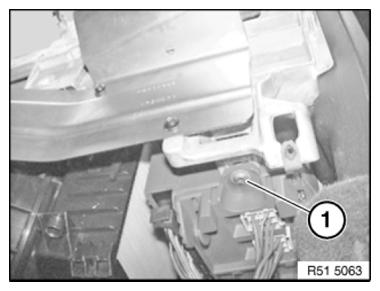

Release screw (1).

Fig 2: Identifying Instrument Panel Carrier Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

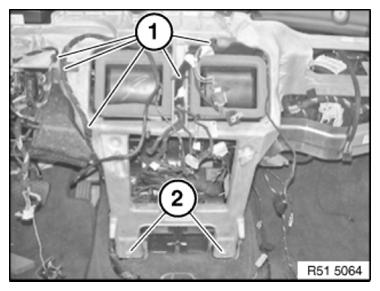

Unclip wiring harness (1).

Unfasten screws (2).

Tightening torque 51 45 4AZ .

Fig 3: Identifying Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull center console approx. 130 mm towards rear.

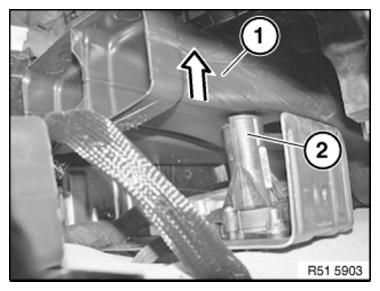

Lift rear cabin heating duct (1) over transmission emergency release (2).

Fig 4: Lifting Rear Cabin Heating Duct Over Transmission Emergency Release

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

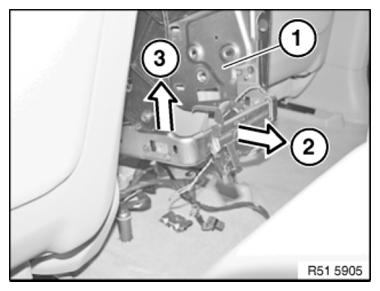

Pull center console (1) approx. 130 mm towards rear (2) and raise at rear approx. 120 mm (3).

Fig 5: Pulling Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

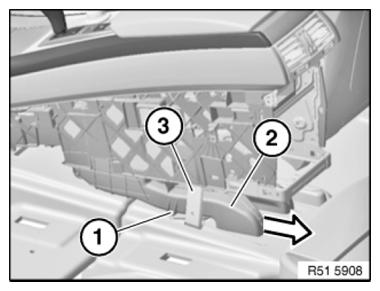

Release screws (1) on left and right.

Pull back rear cabin fan (2) up to holder (3).

Fig 6: Pulling Back Rear Cabin Fan Up To Holder

Courtesy of BMW OF NORTH AMERICA, INC.

A/C system with four-zone control:

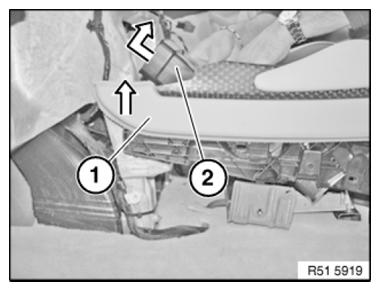

Raise center console (1) at front and feed out heating duct (2) towards top.

Fig 7: Removing Heating Duct

Courtesy of BMW OF NORTH AMERICA, INC.

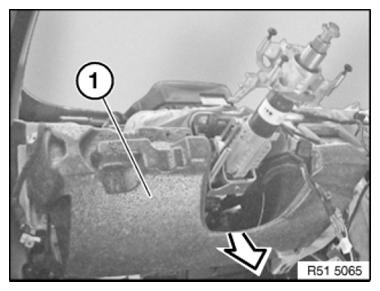

If necessary, pull off knee protection (1).

Fig 8: Pulling Off Knee Protection

Courtesy of BMW OF NORTH AMERICA, INC.

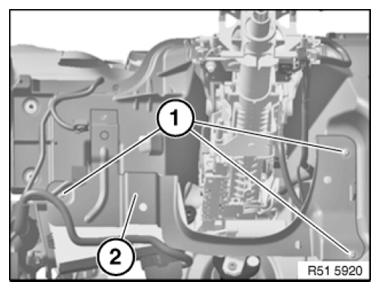

If necessary, release screws (1).

Remove knee protection support plate (2).

Fig 9: Identifying Knee Protection Support Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

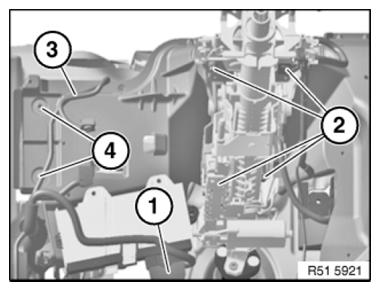

Disconnect plug connection (1) and remove control units from control unit box.

Unfasten screws (2).

Tightening torque 32 31 1AZ .

Lower steering column.

Unclip wiring harness (3).

Unscrew nuts (4).

Tightening torque 51 45 1AZ .

Release diagnosis socket.

Fig 10: Identifying Plug Connection, Wiring Harness, Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 45 4AZ .

Unfasten screws (2).

Tightening torque 51 45 3AZ .

Remove carrier for instrument panel.

Fig 11: Identifying Instrument Panel Carrier Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
