51 71 476 Remove and install/replace the running board on the left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM PANEL FOR COVER ON SIDE MEMBER .

Release clamps (1).

Release screws (2) and remove running board (3).

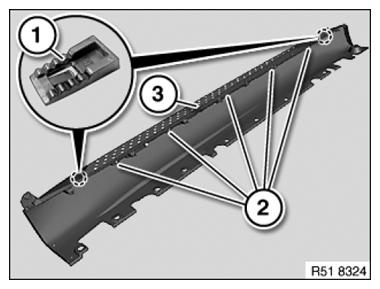

Fig 1: Identifying Running Board, Clamps And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure inserts (1) are correctly seated.

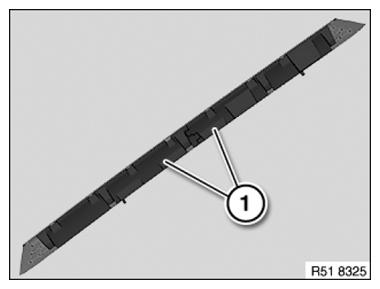

Fig 2: Identifying Inserts

Courtesy of BMW OF NORTH AMERICA, INC.
