51 47 065 Removing and installing/replacing cover at front left or right entrance

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

The NOTES on component bonding with double-sided adhesive tape serve as the basis for these repair instructions and must be observed without fail.

Cover can not be reused.

Sever the double-sided adhesive tape of cover (1) with CUTTING CORD (2) and pulling handles (3).

Detach cover (1) and dispose of it.

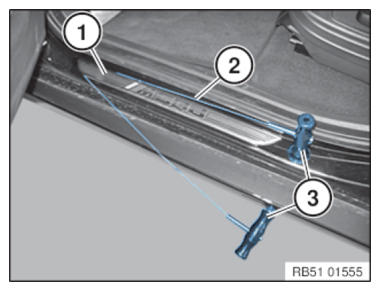

Fig 1: Identifying Cover, Cord And Handles

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bonding surface.

Bond on new cover (1) in accordance with dimension (x and y).

x = 4 to 4.5 mm parallel to entrance edge
y = 30 mm protrusion to joint of cover (2)

NOTE: If the cover (1) is only replaced on one side, the dimensions (x and y) from the other side must be used.

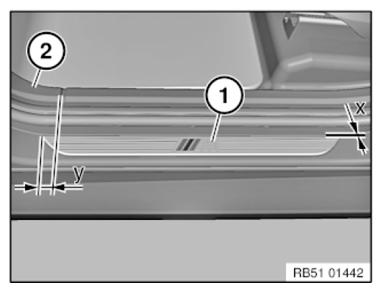

Fig 2: Identifying Cover Dimensions And Joint Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.
