51 41 017 Removing and installing/replacing cover on front right door handle (front passenger side)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Risk of damage!
Before using special tools, check them for damage and if necessary eliminate sharp edges.

Lift out cover (1) with special tool 00 9 317 .

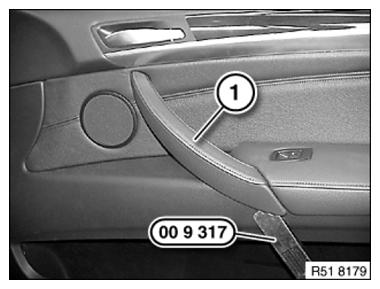

Fig 1: Lifting Out Front Right Door Handle Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) of cover (2) must not be damaged.

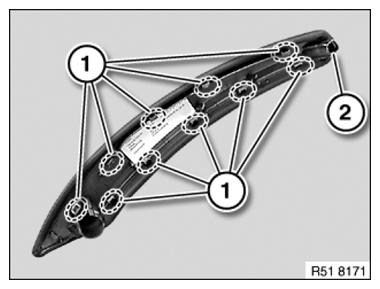

Fig 2: Identifying Front Right Door Handle Cover And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
