51 21 180 Removing and installing/replacing cover on outside door handle

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

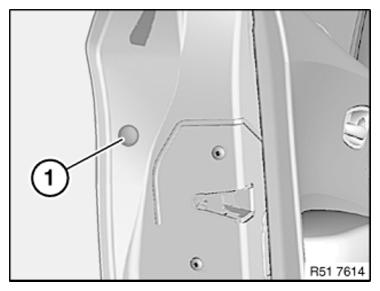

Lever out cap (1) and release screw underneath.

Installation:

If necessary, replace faulty trim (1).

Fig 1: Identifying Lock Barrel Cap

Courtesy of BMW OF NORTH AMERICA, INC.

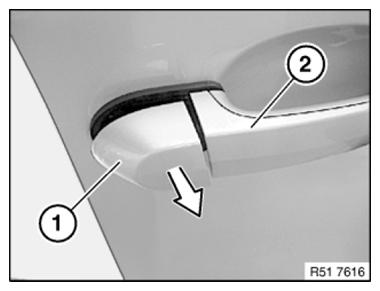

Pull off cover (1) in direction of arrow with outside door handle (2) opened slightly.

Fig 2: Pulling Off Outside Door Handle Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with light package:

Installation:

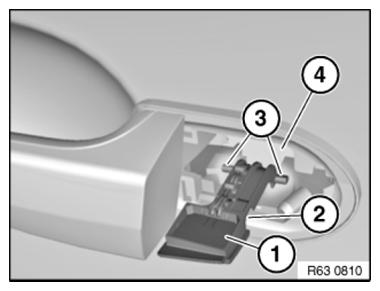

Make sure outside door handle light (1) is correctly positioned in area (2).

Guides (3) of outside door handle light (1) must be correctly seated in carrier for outside door handle (4).

Fig 3: Identifying Outside Door Handle, Light And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

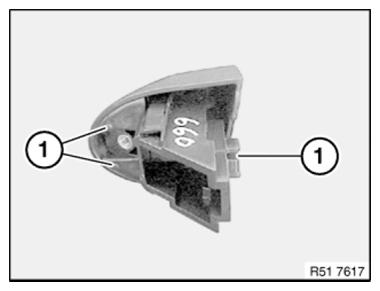

Installation:

Guides (1) must not be damaged.

Fig 4: Identifying Outside Door Handle Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

NOTE: Similar to graphic.

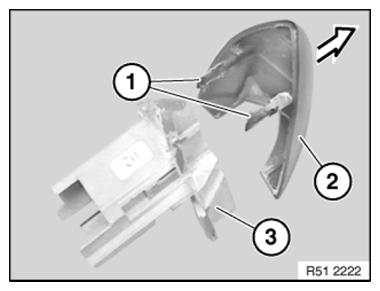

Detach cover (2) from filler piece (3).

Installation:

Catches (1) of cover (2) must not be damaged.

Fig 5: Disconnecting Door Cover From Filler Piece

Courtesy of BMW OF NORTH AMERICA, INC.
