51 11 180 Removing and installing/replacing grille in bumper trim (bottom middle)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove FRONT BUMPER TRIM .

Release latch mechanisms along line (1) and remove grille (2).

Installation note:

Latch mechanisms must not be damaged

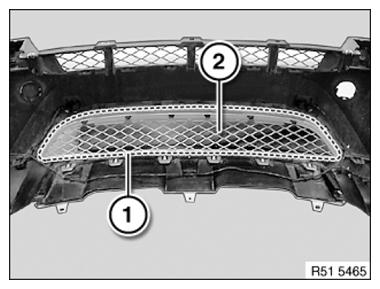

Fig 1: Identifying Grille And Latch Mechanisms Line

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Remove FRONT BUMPER TRIM .

Version with Park Distance Control:

Disconnect plug connection (1).

Unfasten cable tie (2).

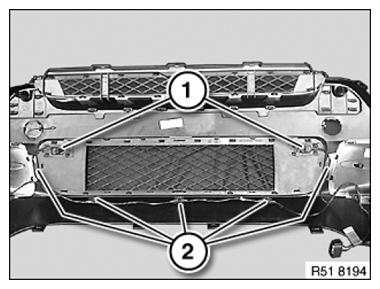

Fig 1: Identifying Plug Connections And Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches along line (1) and remove grille (2).

Installation:

Catches must not be damaged

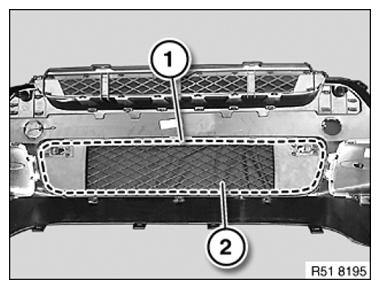

Fig 2: Identifying Catches Line And Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

If necessary, remove ultrasonic transducer (1).

Release catches along line (1) and remove grille (3) from cover (4).

Installation:

Catches must not be damaged

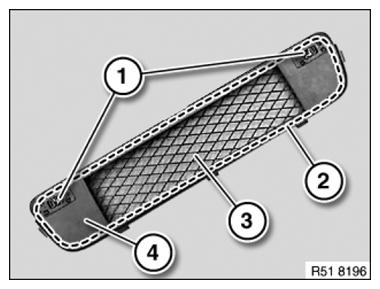

Fig 3: Identifying Ultrasonic Transducer, Catches Line, Grille And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
