51 47 156 Removing and installing/replacing left or right capping in luggage compartment
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove PANEL FOR ROOF PILLAR AT REAR (C-PILLAR) .
- Remove PANEL FOR ROOF PILLAR AT REAR (D-PILLAR) .
- Remove luggage compartment wheel arch trim . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) , 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) or Removing and installing/replacing left luggage compartment wheel arch trim .

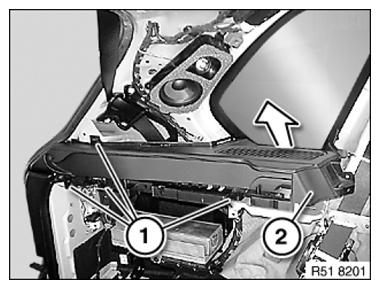

Release screws (1).
Feed out capping (2) towards top.
Installation:

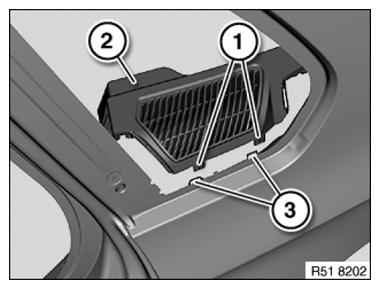

Guide (1) of capping (2) must be correctly inserted into mountings (3) in body.
