72 11... Removing and installing/replacing seat belt for 3rd seat row on left or right
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove PANEL FOR ROOF PILLAR AT REAR
- Remove luggage compartment trim panel . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) .
The operation is shown without the capping for improved clarity.

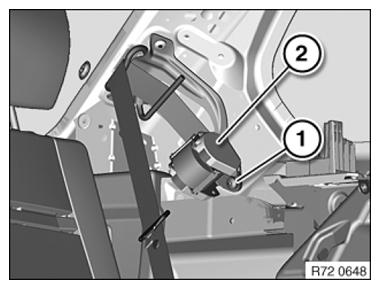

Release screw (1).
Installation:
Replace screws (1).
Tightening torque 72 11 40AZ .
Remove inertial reel mechanism (2).
Installation:
Inertia reel mechanism (2) is coded against incorrect installation.
