72 11 101 Removing and installing/replacing rear center seat belt

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Partially remove BACKREST COVER
Remove REAR SEAT

Unscrew nut (1).

Tightening torque 72 11 20AZ .

Remove inertia reel mechanism (2).

Installation:

Inertia reel mechanism (2) is coded against incorrect installation.

Feed anchor fitting out of backrest cover and backrest frame.

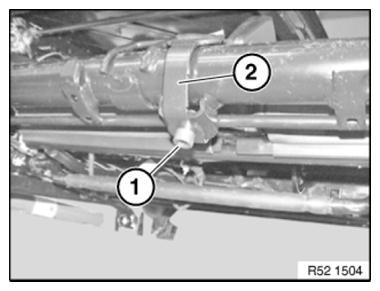

Fig 1: Identifying Inertia Reel Mechanism With Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Partially remove BACKREST COVER

Release screw (1).

Tightening torque: 72 11 26AZ .

Remove end fitting.

Installation:

End fitting is coded against incorrect assembly.

Fig 1: Identifying Rear Center Seat Belt End Fitting Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip retainers (1) for belt pin on left and right.

Remove belt pin (2).

Unscrew nut (3).

Tightening torque 72 11 25AZ .

Remove retractor mechanism.

Installation:

Retractor mechanism is coded against incorrect assembly.

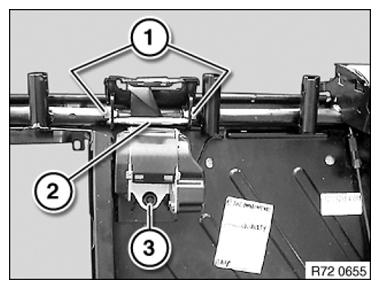

Fig 2: Identifying Retainers, Belt Pin And Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Feed anchor fitting out of backrest cover and backrest frame.
