61 35 953 Removing and installing/replacing interior aerial/antenna for comfort access system (front center console)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CAR COMMUNICATION COMPUTER .

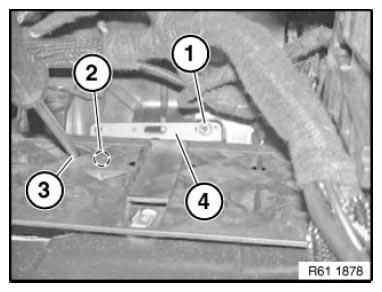

Release screw (1).
Release screw (2) through opening (3).
Feed interior aerial/antenna for comfort access system (4) out of holder.
Disconnect plug connection and remove interior aerial/antenna for comfort access system (4).
