32 41 037 Removing and installing/replacing power steering pump for power steering gear with Dynamic Drive (S63)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When replacing power steering pump:
FLUID RESERVOIR must be replaced in event of metal abrasion, sluggish pump shaft or increased wear!
The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.
FLUID RESERVOIR must be replaced in event of metal abrasion, sluggish pump shaft or increased wear!
The filter integrated in the fluid reservoir can only absorb a limited amount of foreign particles. If the filter clogs, the hydraulic system can no longer be sufficiently protected.
Metal abrasion is perceived in the fluid reservoir as metallically glittering hydraulic fluid.
It is only necessary to replace the fluid reservoir because of leaks (e.g. at hose connections) only in the event of the unavoidably high ingress of dirt.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.
Seal off hydraulic lines with seal plugs.
Necessary preliminary tasks
- Draw off and dispose of hydraulic fluid from fluid reservoir.
- Remove expansion tank.
- Remove WATER COOLER .
- Remove DRIVE BELT FOR GENERATOR .

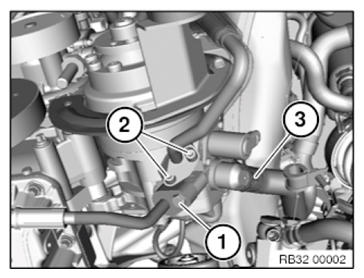

Release bolt (1) and detach line.
Tightening torque 32 41 4AZ (for power steering).
Release screws (2) and pull off line.
Tightening torque 32 41 8AZ .
Release hose clamp (3) and detach suction line from power steering pump.
Installation note:
Replace all sealing rings.
Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.
Align suction line by way of marking to connection on power steering pump.

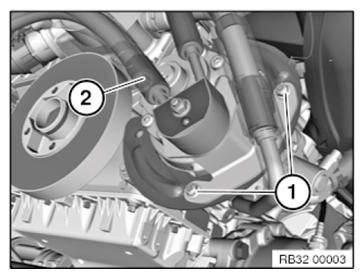

Unscrew nuts (1). Remove holder from power steering pump and place expandable hose (2) off to the side.
Tightening torque 32 41 7AZ .

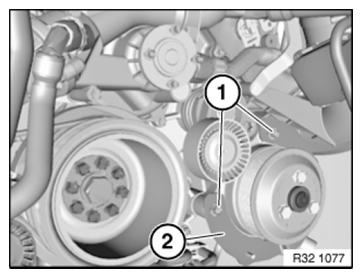

Loosen screws (1), and remove holder (2) and power steering pump.
Tightening torque 32 41 3AZ .
After installation
- Fill and bleed hydraulic system See AZD-AZD-AZDMUC3241-E7X PUMP AND OIL SUPPLY or 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE)
- Check pipe connections for leaks
- If necessary, carry out INITIAL DYNAMIC DRIVE OPERATION
