72 11 096 Removing and installing/replacing rear left or right lower strap fitting
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear seat , see 52 26 001 REMOVING AND INSTALLING/REPLACING BOTH REAR SEATS .
Left or right lower strap fitting:

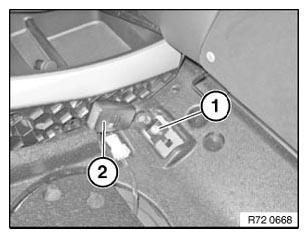

Release screw (1).
Tightening torque: 72 11 22AZ , see 72 11 SEAT BELTS .
Remove lower strap fitting (2).
Installation:
Lower strap fitting is coded to prevent incorrect installation.
