65 50 011 Removing and installing (replacing) video module for on-board monitor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) , see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Follow instructions for handling optical fibres, see 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment trim on left, see 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
Remove left storage compartment , see 51 47... REMOVING AND INSTALLING/REPLACING STORAGE COMPARTMENT IN LUGGAGE COMPARTMENT ON LEFT OR RIGHT .

Release bolts (1).

Feed out video module (2) complete with holder towards top.

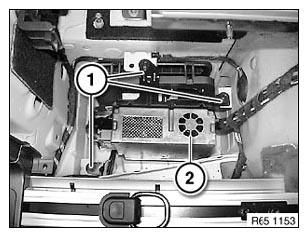

Fig 1: Identifying Video Module And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The number of plug connections (1) and screws (2) can vary, depending on the video module version.

Disconnect plug connection (1).

Release screws (2) and remove holder from video module for on-board monitor.

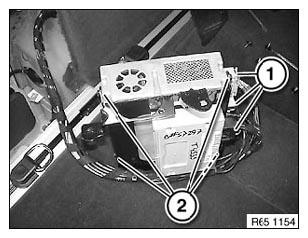

Fig 2: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming and coding .

After replacing the video module and programming, it is absolutely essential to reset the TV standard of the country in question.
