65 24 030 Removing and installing/replacing TV amplifier

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim , see 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

Feed aerial/antenna (1) out of guides (3) and through opening (2).

Installation:

Make sure aerial/antenna is laid correctly.

Fig 1: Identifying Antenna And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

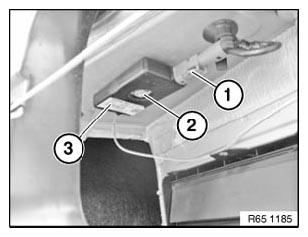

Disconnect plug connection (1).

Release screw (2) and remove TV amplifier (3).

Fig 2: Identifying TV Amplifier, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
