65 24 020 Removing and installing/replacing blocking circuit (left or right)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove roofliner , see 51 44 001 REMOVING AND INSTALLING/REPLACING ROOFLINER (VERSION WITHOUT SLIDE/TILT SUNROOF) or 51 44 011 REMOVING AND INSTALLING/REPLACING ROOFLINER (VERSION WITH SLIDE/TILT SUNROOF) in working area.

Roofliner shown completely removed for purposes of clarity.

Disconnect plug connections (2).

Release screw (1) and remove blocking circuit (3).

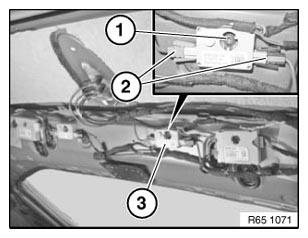

Fig 1: Identifying Blocking Circuit, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

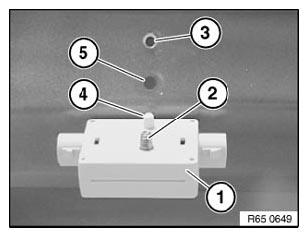

Fig 2: Identifying Locating Pin, Engages Bore And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
