65 12 220 Removing and installing (replacing) satellite tuner, (US version up to 09/2009, M model up to 07/2009 only)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) , see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Follow instructions for handling optical fibres, see 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove luggage compartment panel on side panel on left, see 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

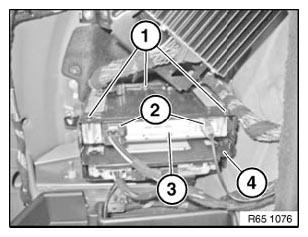

Release screws (1).

Disconnect plug connections (2) and remove satellite tuner (3) from holder (4).

Fig 1: Identifying Plug Connections And Satellite Tuner

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Record ID number (2) of the removed device.

NOTE: The ID number (2) can be found on the label of the housing. Above the barcode the text reads "Sirius ID" (1) and next to it is the company's logo "Sirius Satellite Radio" (3).

Record ID number (2) of the new device.

Fig 2: Identifying Sirius ID, ID Number And Sirius Satellite Radio

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out vehicle programming/coding.
