65 12 050 Removing and installing/replacing left or right central bass speaker

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat , see 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) or 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT .
Lay floor carpet in working area to one side

Release screws (1) and remove trim (2).

Fig 1: Identifying Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2) and feed out central bass speaker.

Tightening torque 65 13 2AZ , see 65 13 SPEAKERS .

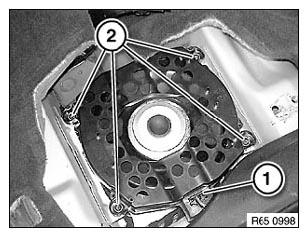

Fig 2: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
