65 75 055 Removing and installing/replacing emergency power siren with tilt sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front left wheel arch trim , see 51 71 039 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (REAR SECTION) .

Release screws (1) and remove cover (2).

Installation:

Make sure rubber grommet (3) is correctly seated.

Fig 1: Identifying Rubber Grommet, Screws And Cover

G04792755

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove housing (2) and disconnect associated plug connection.

Fig 2: Identifying Associated Plug Connection, Housing And Screws

G04792756

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release nut (1) and remove emergency power siren with tilt sensor (2).

Fig 3: Identifying Emergency Power Siren, Tilt Sensor And Nut

G04792757

Courtesy of BMW OF NORTH AMERICA, INC.

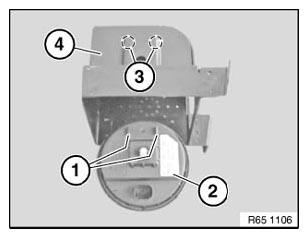

IMPORTANT: Risk of damage!
Guides (1) of emergency power siren (2) must be correctly seated in area (3) of holder (4)!

Fig 4: Identifying Guides, Emergency Power Siren And Holder

G06213905

Courtesy of BMW OF NORTH AMERICA, INC.
