63 99 432 Replacing light bulb(s) for ceiling light (rear)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (interior lights , see 63 99... Instructions for replacing light bulbs (interior lights) ).

Necessary preliminary tasks:

Remove rear ceiling light , see 63 31 003 Removing and installing/replacing complete ceiling light (rear)

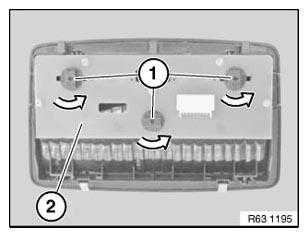

Turn bulb holder(s) (1) in direction of arrow and remove from ceiling light (2).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull bulb for ceiling light (1) out of bulb holder (2).

Fig 2: Pulling Bulb For Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb , see 63 31 INTERIOR LIGHTS E71 .
