63 99 401 Replacing bulb for left or right number/license plate light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (exterior lights
, see 63 99... Instructions for replacing light bulbs (interior lights) ).
Necessary preliminary tasks:
- Remove license plate light , see 63 26 000 Removing and installing/replacing left or right number/license plate light .

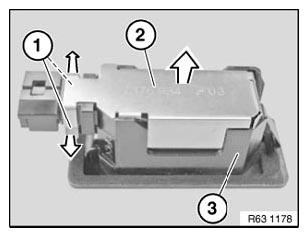

Release retaining bars (1) in direction of arrow from number/license plate light (3).
Feed heat shield (2) in direction of arrow out of number/license plate light (3) and remove.
Installation:
Make sure heat shield (2) is correctly seated and engaged on number/license plate light (3).
Spread bow contacts (1) outwards and remove bulb for license plate light (2).
Installation:
Note type of bulb , see 63 26 LICENSE PLATE LIGHTS E70/E71 .
