63 31 191 Replacing LED for rear door trim panel light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim , see 51 42 000 REMOVING AND INSTALLING (REPLACING) REAR LEFT OR RIGHT DOOR TRIM PANEL .

NOTE: Operation is shown by way of example on the E70. There may be differences in detail in the case of other vehicle models.

Remove sheathing of wiring harness (1) in area (A).

Cut through wiring harness (1) of LED for rear door trim panel light (2) in area (A) and remove LED for rear door trim panel light (2).

Installation:

Adapt length of wiring harness of new LED for door trim panel light.

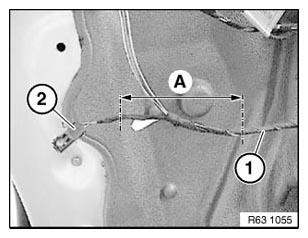

Fig 1: Identifying Rear Door Trim Panel And Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Connect wiring harness of new LED for door trim panel light using butt connectors to wiring harness (1), see 61 13... BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION .

Wrap wiring harness (1) in insulating tape.
